SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA
Control Type:
INDEPENDENT CONTROL
Count Direction:
BIDIRECTIONAL
Family:
BCT/FBT
JESD-30 Code:
R-PDSO-G24
JESD-609 Code:
e4
Length:
15.4 mm
Load Capacitance (CL):
50 pF
Logic IC Type:
REGISTERED BUS TRANSCEIVER
Max I(ol):
0.064 A
Moisture Sensitivity Level:
1
Number of Bits:
8
Number of Functions:
8
Number of Ports:
2
Number of Terminals:
24
Operating Temperature-Max:
70 °C
Output Characteristics:
3-STATE
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP24,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power Supply Current-Max (ICC):
69 mA
Prop. Delay@Nom-Sup:
9.8 ns
Propagation Delay (tpd):
9.9 ns
Qualification Status:
Not Qualified
Schmitt Trigger:
NO
Screening Level:
MIL-STD-883
Seated Height-Max:
2.65 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Trigger Type:
POSITIVE EDGE
Width:
7.5 mm
SN74BCT652DW Frequently Asked Questions (FAQs)
The maximum operating frequency of the SN74BCT652DW is 100 MHz, but it can vary depending on the specific application and system design.
To ensure signal integrity, use proper PCB layout techniques, such as impedance matching, signal routing, and termination. Additionally, consider using series termination resistors and/or parallel termination resistors to reduce signal reflections and ringing.
The recommended power-up sequence for the SN74BCT652DW is to apply power to the VCC pin first, followed by the input signals. This helps to prevent unwanted device behavior and ensures proper initialization.
Yes, the SN74BCT652DW is compatible with 3.3V systems, but it requires a 5V tolerant input buffer to ensure proper operation. Additionally, the output voltage levels may need to be adjusted to match the 3.3V system requirements.
To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and follow proper PCB thermal design guidelines. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN74BCT652DW Overview

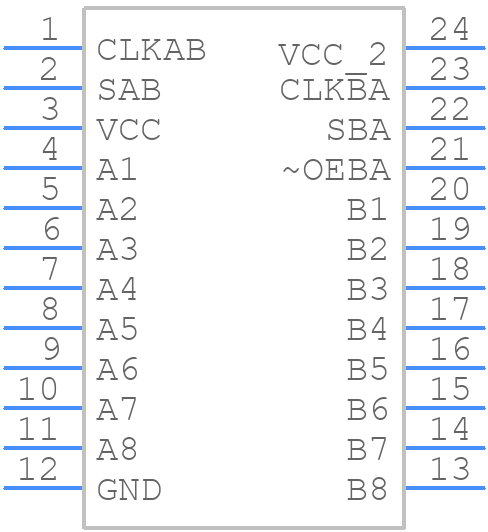

Use the download button to access the SN74BCT652DW schematic symbol, PCB footprint, and 3D model.
