Texas Instruments provides a recommended PCB layout in the application note SLVA883, which includes guidelines for signal routing, decoupling, and thermal management to ensure optimal performance and minimize signal integrity issues.
The SN74CB3Q6800DBQR has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Ensure that the thermal plane is connected to a heat sink or a thermal management system to prevent overheating. Additionally, follow the thermal design guidelines in the datasheet and application notes to ensure reliable operation.
The maximum operating frequency of the SN74CB3Q6800DBQR is 500 MHz, but it can be limited by the system's signal integrity, PCB layout, and termination. Ensure that the system is designed to operate within the recommended frequency range to prevent signal degradation and errors.
Yes, the SN74CB3Q6800DBQR is compatible with 3.3V systems, but ensure that the VCC supply voltage is within the recommended range of 2.3V to 3.6V. Additionally, follow the recommended DC and AC specifications in the datasheet to ensure reliable operation.
Use signal integrity analysis tools such as IBIS models, signal integrity software, and oscilloscopes to troubleshoot signal integrity issues. Ensure that the PCB layout follows the recommended guidelines, and that the signal termination and impedance matching are correct. Consult the application notes and datasheet for troubleshooting guidelines and signal integrity recommendations.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN74CB3Q6800DBQR Overview

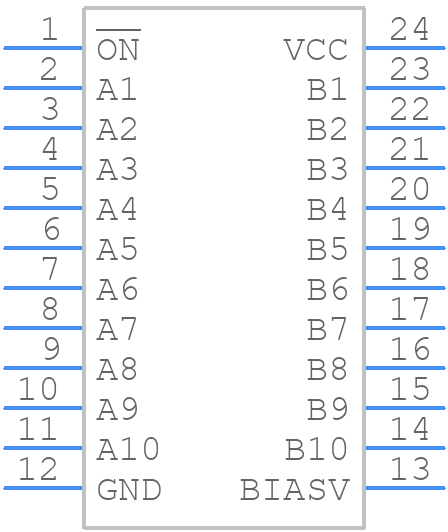

Use the download button to access the SN74CB3Q6800DBQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74C,
or try a keyword search, such as Bus Driver/Transceivers
