The maximum operating frequency of the SN74CBT3345DW is 100 MHz, but it can vary depending on the specific application and system design.
To ensure signal integrity, it's essential to follow proper PCB design and layout practices, such as using controlled impedance traces, minimizing signal routing, and using termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
Yes, the SN74CBT3345DW can be used in a 3.3V system. The recommended power supply voltage range is 2.3V to 3.6V, with a maximum current draw of 20mA per output. Ensure that the power supply is stable and well-regulated to prevent voltage drops or noise that could affect device operation.
The SN74CBT3345DW has a maximum junction temperature of 150°C. To ensure reliable operation, follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Consider using thermal simulation tools to analyze and optimize your design.
Yes, the SN74CBT3345DW has built-in ESD protection, but it's still essential to follow proper ESD handling and protection practices during manufacturing, assembly, and testing. Ensure that your production environment and equipment meet the necessary ESD standards, and consider using ESD protection devices or circuits in your design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74CBT3345DW Overview

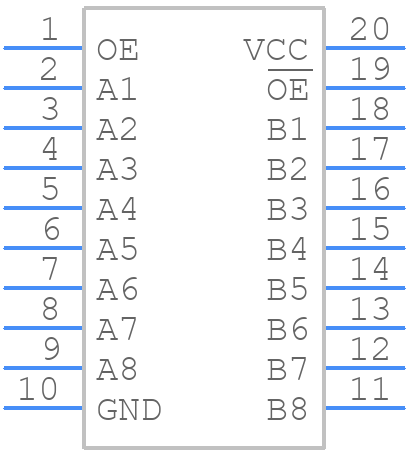

Use the download button to access the SN74CBT3345DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74C,
or try a keyword search, such as Bus Driver/Transceivers
