The maximum operating frequency of the SN74CBT6800CDGVR is 250 MHz, but it can vary depending on the specific application and operating conditions.
To ensure signal integrity, it's essential to follow proper PCB design practices, such as using controlled impedance traces, minimizing signal routing distances, and using termination resistors as needed. Additionally, consider using simulation tools to analyze signal integrity and make adjustments as necessary.
Yes, the SN74CBT6800CDGVR can be used in a 3.3V system. The recommended power supply voltage is 3.0V to 3.6V, with a maximum tolerance of ±10%. Ensure that the power supply is stable and noise-free to prevent signal degradation.
Thermal management is crucial for the SN74CBT6800CDGVR. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to dissipate high power. The maximum junction temperature is 150°C, so monitor the device temperature and adjust the design as necessary to prevent overheating.
Yes, follow proper layout practices to minimize signal coupling and radiation. Keep sensitive signals away from the device's power pins, and use a solid ground plane to reduce noise. Additionally, consider using a shielded enclosure or compartmentalizing the design to reduce electromagnetic interference (EMI).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74CBT6800CDGVR Overview

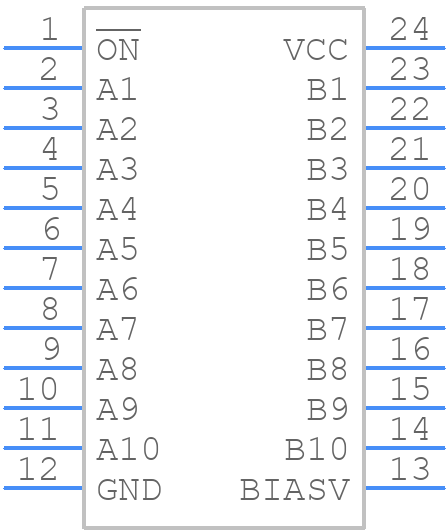

Use the download button to access the SN74CBT6800CDGVR schematic symbol, PCB footprint, and 3D model.
