The maximum operating frequency of the SN74CBTLV16800DLR is 250 MHz, but it can vary depending on the specific application and system design.
To ensure signal integrity, it's essential to follow proper PCB design and layout guidelines, such as using controlled impedance traces, minimizing signal routing distances, and using termination resistors as needed. Additionally, consider using simulation tools to analyze signal integrity and make adjustments as necessary.
Yes, the SN74CBTLV16800DLR can be used in a 3.3V system. The recommended power supply voltage is 3.0V to 3.6V, with a maximum tolerance of ±10%. Ensure that the power supply is stable and well-regulated to prevent voltage drops or spikes that could affect device operation.
Thermal management is crucial for the SN74CBTLV16800DLR. Ensure good airflow around the device, and consider using heat sinks or thermal interfaces if necessary. The device has a maximum junction temperature of 150°C, so monitor temperature and adjust the system design accordingly to prevent overheating.
The SN74CBTLV16800DLR has built-in ESD protection and latch-up prevention measures, including diodes and resistors to prevent overvoltage and overcurrent conditions. However, it's still essential to follow proper handling and storage procedures to prevent ESD damage, and to design the system with ESD protection in mind.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74CBTLV16800DLR Overview

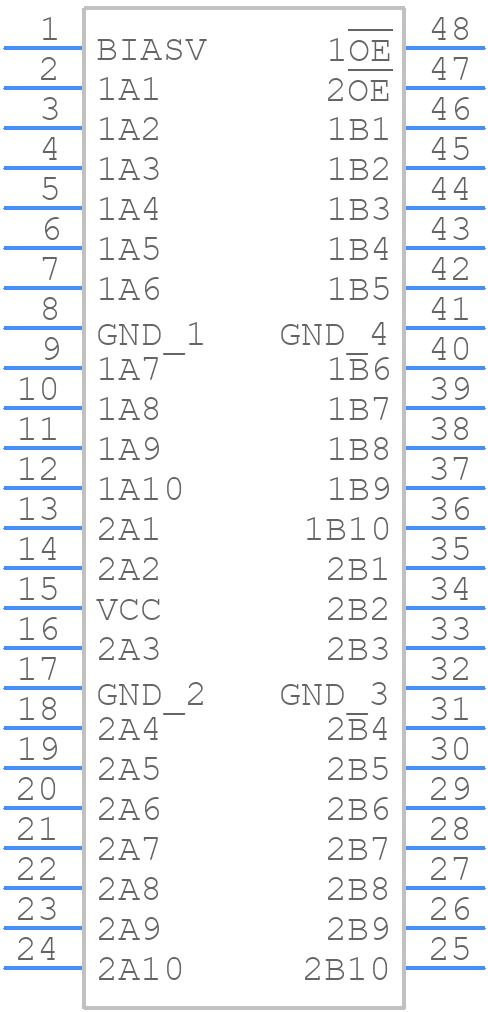

Use the download button to access the SN74CBTLV16800DLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74C,
or try a keyword search, such as Bus Driver/Transceivers
