The maximum operating frequency of the SN74CBTLV3383DWR is 250 MHz, but it can vary depending on the specific application and system design.
To ensure signal integrity, it's essential to follow proper PCB design and layout practices, such as using controlled impedance traces, minimizing signal routing distances, and using termination resistors as needed. Additionally, consider using simulation tools to analyze signal integrity and make adjustments as necessary.
Yes, the SN74CBTLV3383DWR can be used in a 3.3V system. The recommended power supply voltage range is 2.3V to 3.6V, with a typical operating voltage of 3.3V. Ensure that the power supply is stable and well-regulated to prevent voltage droop or noise that could affect device operation.
Thermal management is crucial for the SN74CBTLV3383DWR. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device will be operating in high-temperature or high-power conditions. The device has a maximum junction temperature of 150°C, so monitor temperature and adjust the system design as needed to prevent overheating.
The SN74CBTLV3383DWR has built-in ESD protection and latch-up prevention measures, including diodes and resistors to protect against electrostatic discharge and latch-up. However, it's still essential to follow proper handling and assembly procedures to prevent damage during manufacturing and operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74CBTLV3383DWR Overview

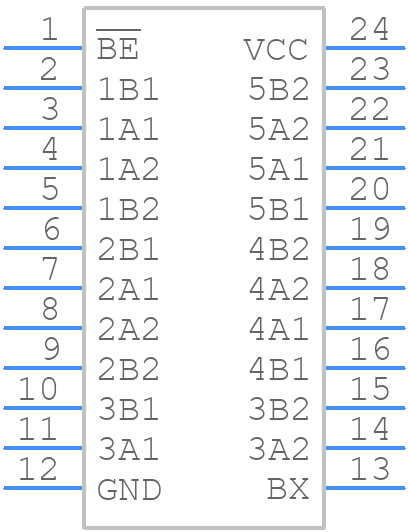

Use the download button to access the SN74CBTLV3383DWR schematic symbol, PCB footprint, and 3D model.
