SN74F1016DW - Texas Instruments

Description: 16-Bit Schottky Barrier Diode R-C Bus-Termination Array

Download SN74F1016DW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

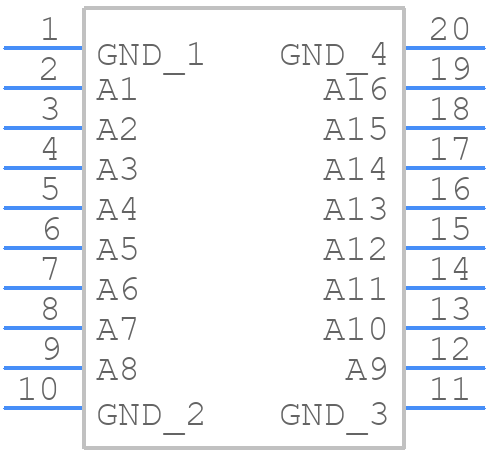

Symbol
SN74F1016DW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74F1016DW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0020A
click to zoom
3D Models
SN74F1016DW - Texas Instruments - 3D model - Small Outline Packages - DW0020A
click to zoom

SN74F1016DW Details

  • Manufacturer Part Number:

    SN74F1016DW

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Differential Output:

    NO

  • Interface IC Type:

    DIODE BUS TERMINATION ARRAY

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Signal Lines:

    16

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Pull-up Resistance-Nom:

    50 Ω

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

SN74F1016DW Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the SN74F1016DW is 100 MHz. However, this can vary depending on the specific application, board layout, and operating conditions.
  • Proper termination is crucial for the SN74F1016DW. Use a 50-ohm termination resistor between the output and VCC or GND, and ensure the trace length is less than 1 inch to minimize reflections.
  • To prevent latch-up and ensure proper operation, power up the VCC pin before applying any input signals. Also, ensure that the input signals are stable before applying the clock signal.
  • Yes, the SN74F1016DW is compatible with 3.3V systems. However, ensure that the input signals are within the recommended voltage range (VIL and VIH) to maintain proper operation.
  • The asynchronous reset input (MR) should be tied to VCC through a pull-up resistor (e.g., 1 kΩ) to ensure proper operation. You can also use an external reset signal, but ensure it meets the recommended voltage levels.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74F1016DW Overview

Use the download button to access the SN74F1016DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74F, or try a keyword search, such as Bus Terminators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
