SN74F1056D - Texas Instruments

Description: Texas Instruments SN74F1056D, 8 x SMT Schottky Diode, Common Anode, 7V 50mA, 7ns, 16-Pin SOIC

Download SN74F1056D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

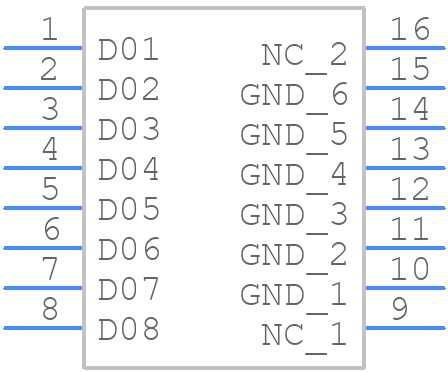

Symbol
SN74F1056D - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74F1056D - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
SN74F1056D - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

SN74F1056D Details

  • Manufacturer Part Number:

    SN74F1056D

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Differential Output:

    NO

  • Interface IC Type:

    DIODE BUS TERMINATION ARRAY

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Signal Lines:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SN74F1056D Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the SN74F1056D is 100 MHz, but it can vary depending on the operating conditions and the quality of the clock signal.
  • To ensure proper power and decoupling, use a high-quality power supply with a low impedance output, and decouple the VCC pin with a 0.1 μF ceramic capacitor to ground. Additionally, use a 10 μF electrolytic capacitor in parallel with the 0.1 μF capacitor to filter out low-frequency noise.
  • The recommended termination scheme for the SN74F1056D is to use a series terminator (e.g., 33 Ω) at the far end of the transmission line, and a parallel terminator (e.g., 50 Ω) at the near end. This helps to reduce reflections and ensure signal integrity.
  • The output enable (OE) pin should be tied to a logic level (either VCC or GND) to enable or disable the output. If left floating, the OE pin can cause unpredictable behavior. It's recommended to use a pull-up or pull-down resistor to ensure a valid logic level.
  • The maximum capacitive load that the SN74F1056D can drive is 30 pF. Exceeding this limit can cause signal degradation and reduce the device's reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74F1056D Overview

Use the download button to access the SN74F1056D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74F, or try a keyword search, such as Bus Terminators
