The maximum frequency of operation for the SN74F157AD is typically around 100 MHz, but this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform simulations or testing to determine the maximum frequency for a specific design.
To ensure proper signal integrity when using the SN74F157AD, it's essential to follow proper PCB design practices, such as using controlled impedance traces, minimizing signal routing distances, and using termination resistors as needed. Additionally, ensure that the power supply is clean and stable, and that the device is operated within its recommended operating conditions.
Yes, the SN74F157AD can be used as a demultiplexer by simply reversing the input and output connections. However, keep in mind that the device is optimized for multiplexing applications, and demultiplexing may require additional circuitry or signal conditioning to ensure proper operation.
The power consumption of the SN74F157AD depends on the operating frequency, input signal levels, and output loading. According to the datasheet, the typical quiescent current is around 20 mA, and the dynamic current consumption is around 10 mA/MHz. However, it's recommended to consult the datasheet and perform power consumption calculations based on the specific application requirements.
The SN74F157AD is a 5V device, but it can be used with 3.3V logic levels with some limitations. The device can tolerate input voltages up to 5.5V, but the output voltage levels may not be compatible with 3.3V logic. It's recommended to use level translators or voltage dividers to ensure proper signal compatibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74F157AD Overview

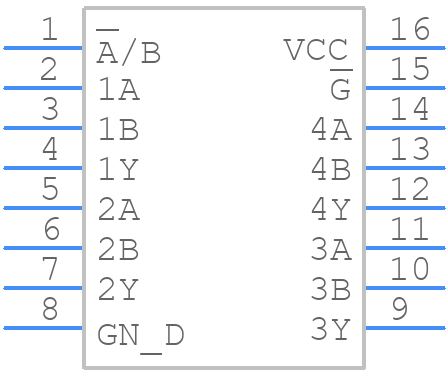

Use the download button to access the SN74F157AD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74F,
or try a keyword search, such as Multiplexer/Demultiplexers
