The maximum operating frequency of the SN74F240N is 30 MHz, but it can vary depending on the load capacitance and the output current.
The input voltage range for the SN74F240N is 4.5V to 5.5V. It's recommended to use a voltage regulator or a voltage clamp to ensure the input voltage stays within this range to prevent damage to the device.
The power consumption of the SN74F240N depends on the operating frequency and the output current. Typically, it consumes around 20-30 mA at 5V and 10 MHz. However, it's recommended to check the datasheet for specific power consumption values based on the operating conditions.
No, the SN74F240N is not recommended for use in a 3.3V system. It's designed to operate at 5V, and using it at 3.3V may result in reduced performance, increased power consumption, or even damage to the device.
To ensure signal integrity when using the SN74F240N, it's recommended to use proper PCB design techniques, such as using short signal traces, minimizing impedance mismatch, and using termination resistors if necessary. Additionally, ensure that the power supply is clean and stable, and that the device is properly decoupled.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN74F240N Overview

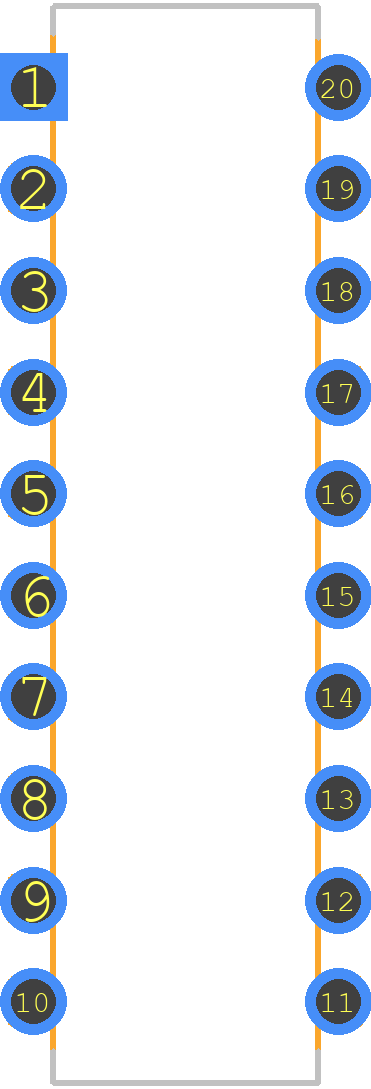

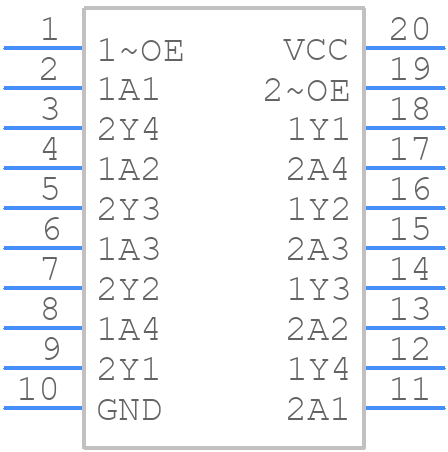

Use the download button to access the SN74F240N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74F,
or try a keyword search, such as Bus Driver/Transceivers
