The recommended operating voltage range for the SN74F280BDR is 4.5V to 5.5V, with a typical voltage of 5V.
To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use termination resistors as needed. Also, consider using a signal integrity analysis tool to simulate and optimize your design.
While the SN74F280BDR is specified for 5V operation, it can be used in a 3.3V system with some limitations. However, the output voltage swing will be reduced, and the device may not meet all the specified timing parameters. Consult the datasheet and application notes for more information.
To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and follow proper PCB thermal design guidelines. Also, consider using a thermal analysis tool to simulate and optimize your design.
Yes, follow the layout guidelines provided in the datasheet and application notes, including keeping the device away from noise sources, using a solid ground plane, and minimizing signal trace lengths and loops.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN74F280BDR Overview

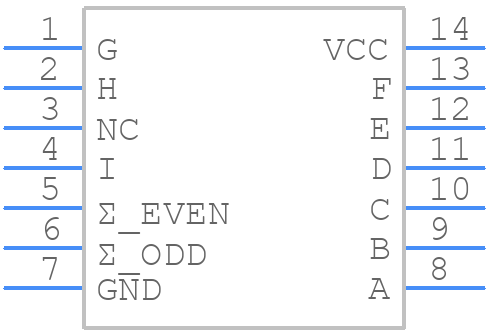

Use the download button to access the SN74F280BDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74F,
or try a keyword search, such as Arithmetic Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
