The maximum operating frequency of the SN74F280BN is 100 MHz, but it can vary depending on the specific application and operating conditions.
To ensure signal integrity, use proper PCB layout techniques, such as keeping signal traces short and away from noise sources, using termination resistors, and minimizing impedance mismatches.
The power consumption of the SN74F280BN depends on the operating frequency, voltage, and load. Typically, it consumes around 20-30 mA at 5V and 50 MHz, but can be as low as 1 mA in standby mode.
Yes, the SN74F280BN can operate at 3.3V, but the output voltage will be limited to 3.3V, and the input voltage threshold may be affected. Consult the datasheet for specific voltage and current requirements.
To handle thermal issues, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power dissipation for extended periods.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN74F280BN Overview

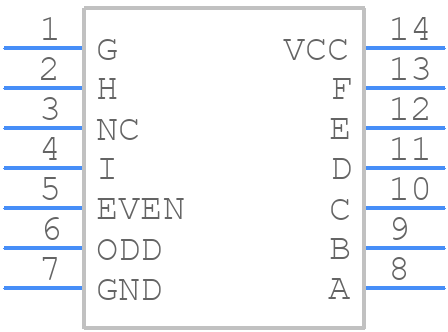

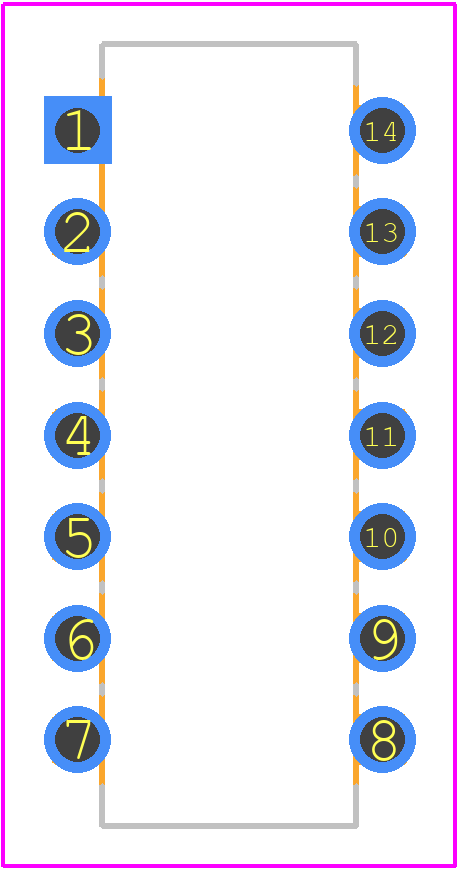

Use the download button to access the SN74F280BN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74F,
or try a keyword search, such as Arithmetic Circuits
