SN74GTLP1395DWR - Texas Instruments

Description: Two 1-Bit LVTTL/GTLP Adj-Edge-Rate Bus Xcvrs w Split LVTTL Port, Fdbk Path and Selectable Polarity

Download SN74GTLP1395DWR Model

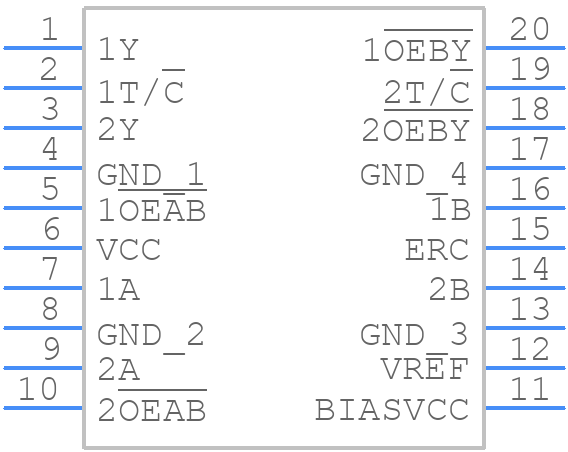

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN74GTLP1395DWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0020A
click to zoom
3D Models
SN74GTLP1395DWR - Texas Instruments  - 3D model - Small Outline Packages - DW0020A
click to zoom

SN74GTLP1395DWR Details

  • Manufacturer Part Number:

    SN74GTLP1395DWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Control Type:

    INDEPENDENT CONTROL

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    GTLP

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS TRANSCEIVER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    2

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    CONFIGURABLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    20 mA

  • Prop. Delay@Nom-Sup:

    6.3 ns

  • Propagation Delay (tpd):

    6.3 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    0.79 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

SN74GTLP1395DWR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends following the PCB layout guidelines in the 'High-Speed PCB Layout Guidelines' application report (SLVA626) to minimize signal integrity issues. This includes using a solid ground plane, minimizing trace length and impedance, and using vias to connect signals to the ground plane.
  • Proper termination of the SN74GTLP1395DWR is critical to prevent signal reflections. Texas Instruments recommends using a series terminator (Rs) of 50-75 ohms at the far end of the transmission line, and a parallel terminator (Rt) of 50-75 ohms at the near end of the transmission line. The termination resistors should be placed as close to the device pins as possible.
  • The maximum operating frequency of the SN74GTLP1395DWR is 1.5 GHz. However, the actual operating frequency may be limited by the system design, PCB layout, and signal integrity considerations.
  • The SN74GTLP1395DWR requires a specific power sequencing order to prevent damage to the device. Texas Instruments recommends powering up the VCC supply before the VCCA supply, and powering down the VCCA supply before the VCC supply. The power sequencing requirements are detailed in the device datasheet.
  • The recommended operating temperature range for the SN74GTLP1395DWR is -40°C to 85°C. Operating the device outside of this range may affect its performance and reliability.
