Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-speed design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve signal integrity.
The SN74GTLPH16945GR has a high current requirement, especially during switching. Ensure your power supply can provide the necessary current, and consider using a low-ESR capacitor close to the device to filter out noise. You may also need to add additional decoupling capacitors and consider using a power plane with a high current capacity.
The SN74GTLPH16945GR has a high power dissipation, so thermal management is crucial. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. You may also need to add thermal vias to your PCB design to help dissipate heat.
To ensure signal integrity, use controlled impedance traces, and maintain a consistent impedance throughout the signal path. Use a signal integrity analysis tool to simulate and optimize your design. Additionally, consider using a signal conditioning circuit or a repeater to improve signal quality.
The SN74GTLPH16945GR has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Ensure your PCB design includes ESD protection diodes and consider using an ESD-protected connector or socket.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74GTLPH16945GR Overview

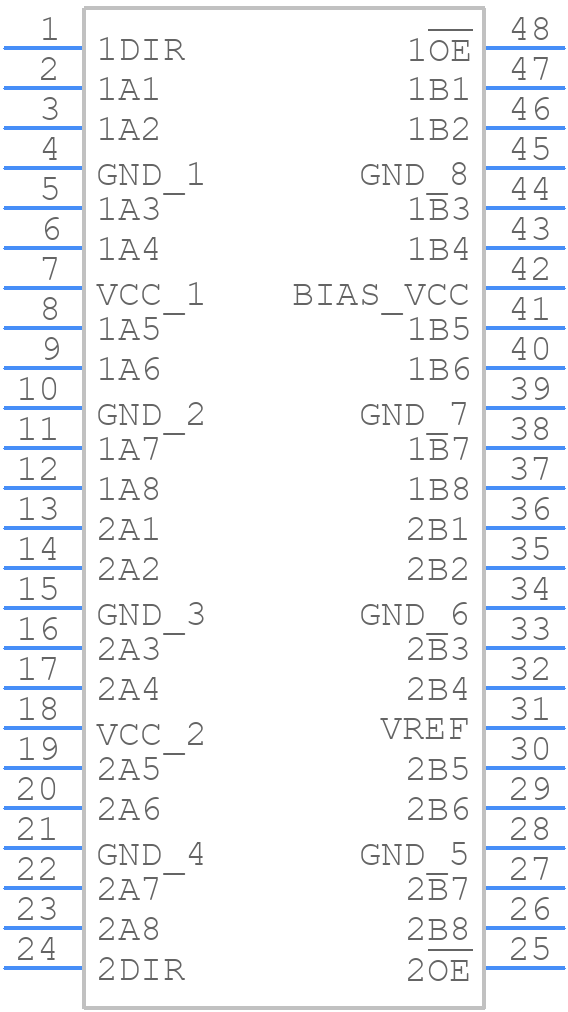

Use the download button to access the SN74GTLPH16945GR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74G,
or try a keyword search, such as Bus Driver/Transceivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
