The maximum clock frequency for the SN74HC590ADRG4 is 100 MHz. However, this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform thorough testing to determine the maximum clock frequency for your specific use case.
To ensure reliable data transfer with the SN74HC590ADRG4, it's essential to follow proper PCB design and layout guidelines, use suitable termination resistors, and ensure that the clock signal is clean and stable. Additionally, consider using a clock buffer or repeater to maintain signal integrity, especially in high-speed applications.
The power consumption of the SN74HC590ADRG4 depends on the operating frequency, voltage, and load conditions. According to the datasheet, the typical power consumption is around 20-30 mW at 50 MHz and 5V supply voltage. However, this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform power consumption calculations for your specific use case.
Yes, the SN74HC590ADRG4 can be used in a 3.3V system. The device is specified to operate from 2V to 6V, making it compatible with 3.3V systems. However, ensure that the input and output voltage levels are within the recommended operating range to maintain signal integrity and prevent damage to the device.
To handle thermal issues with the SN74HC590ADRG4, ensure that the device is properly mounted on a heat sink or PCB with good thermal conductivity. Avoid overheating the device by keeping it within the recommended operating temperature range (-40°C to 125°C). Additionally, consider using thermal interface materials or heat sinks to improve heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74HC590ADRG4 Overview

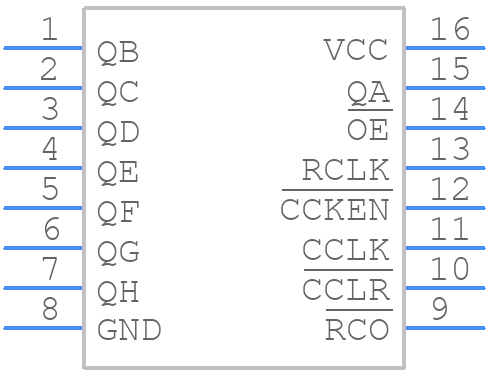

Use the download button to access the SN74HC590ADRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74H,
or try a keyword search, such as Counters
