The maximum clock frequency for the SN74HC590ADW is 100 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to check the device's timing characteristics and perform thorough testing to ensure reliable operation at the desired clock frequency.
To ensure reliable data transfer, make sure to follow proper signal integrity practices, such as using proper termination, impedance matching, and signal routing. Additionally, ensure that the clock and data signals are properly synchronized, and that the device is operated within its recommended operating conditions.
The power consumption of the SN74HC590ADW depends on the operating frequency, voltage, and load conditions. According to the datasheet, the typical power consumption is around 20-30 mA at 5V and 50 MHz. To minimize power consumption, consider using a lower operating frequency, reducing the voltage supply, or using power-saving modes if available.
Yes, the SN74HC590ADW can be used in a 3.3V system, but the device's performance and power consumption may be affected. The device is specified to operate from 2V to 6V, but the output voltage levels may not be compatible with 3.3V logic levels. Ensure that the device is properly biased and that the output signals are properly terminated to prevent signal degradation.
To handle errors or faults in the SN74HC590ADW, implement error detection and correction mechanisms, such as checksums or CRCs, to detect data corruption. For clock skew issues, consider using clock synchronization techniques, such as clock domain crossing or clock stretching. Additionally, ensure that the device is properly reset and initialized during power-up or fault conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74HC590ADW Overview

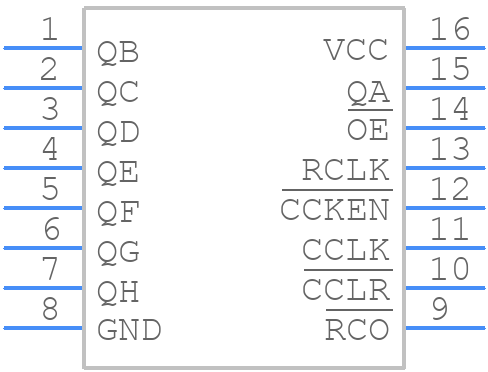

Use the download button to access the SN74HC590ADW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74H,
or try a keyword search, such as Counters
