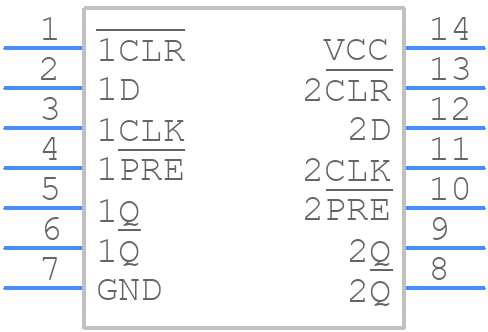

SN74HC74DG4 - Texas Instruments

SN74HC74DG4 Details

• Manufacturer Part Number:

  SN74HC74DG4

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  SOIC-14

• Pin Count:

  14

• Country Of Origin:

  Malaysia, Mexico

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Family:

  HC/UH

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e4

• Length:

  8.65 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  D FLIP-FLOP

• Max Frequency@Nom-Sup:

  25000000 Hz

• Max I(ol):

  0.0052 A

• Moisture Sensitivity Level:

  1

• Number of Bits:

  1

• Number of Functions:

  2

• Number of Terminals:

  14

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TUBE

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  0.04 mA

• Propagation Delay (tpd):

  220 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Trigger Type:

  POSITIVE EDGE

• Width:

  3.91 mm

• fmax-Min:

  29 MHz
