The maximum operating frequency of the SN74HCS138BQBR is 40 MHz, but it can vary depending on the specific application and operating conditions.
To ensure signal integrity, use proper PCB layout techniques, such as using short signal traces, minimizing impedance mismatch, and adding termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
Yes, the SN74HCS138BQBR can be used in a 3.3V system, but the output voltage will be limited to 3.3V. This may affect the noise margin and signal integrity, especially if the device is driving a load. Consult the datasheet for specific voltage and current ratings.
To ensure proper power sequencing, follow the recommended power-up/down sequence in the datasheet. Typically, this involves powering up the VCC pin before the input signals, and powering down the VCC pin after the input signals. This helps prevent latch-up and ensures reliable operation.
The recommended decoupling capacitor value is typically 0.1 μF to 1 μF, placed as close as possible to the VCC pin. This helps to filter out noise and reduce power supply ripple. Consult the datasheet for specific recommendations and consider using a capacitor with a low equivalent series resistance (ESR).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74HCS138BQBR Overview

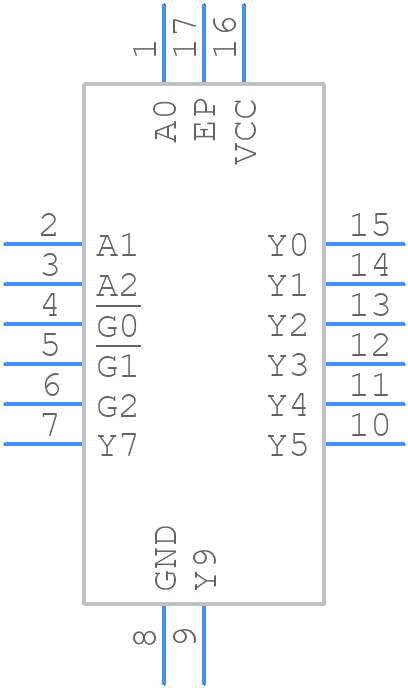

Use the download button to access the SN74HCS138BQBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74H,
or try a keyword search, such as Decoder/Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
