SN74LS122NSR - Texas Instruments

Description: Retriggerable monostable multivibrator

Download SN74LS122NSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

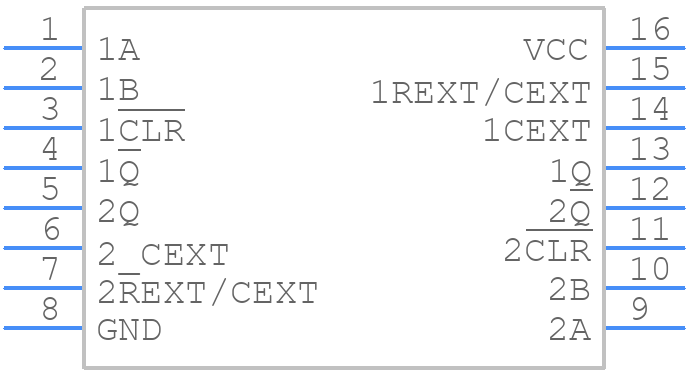

SN74LS122NSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74LS122NSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - NS (R-PDSO-G**)
click to zoom
3D Models
SN74LS122NSR - Texas Instruments - 3D model - Small Outline Packages - NS (R-PDSO-G**)
click to zoom

SN74LS122NSR Details

  • Manufacturer Part Number:

    SN74LS122NSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    LS

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    MONOSTABLE MULTIVIBRATOR

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Data/Clock Inputs:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    20 mA

  • Propagation Delay (tpd):

    56 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

SN74LS122NSR Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the SN74LS122NSR is 35 MHz, but it can vary depending on the load capacitance and the output current.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range (-40°C to 85°C).
  • The SN74LS122NSR is a 5V device, but it can be used in a 3.3V system with some limitations. The output voltage will be lower than 3.3V, and the device may not meet its specified timing parameters. It is recommended to use a level translator or a voltage regulator to ensure proper operation.
  • It is recommended to power up the SN74LS122NSR in a specific sequence to prevent damage or incorrect operation. The power-up sequence should be VCC, then VEE, and then the input signals. The power-down sequence should be the reverse of the power-up sequence.
  • The recommended termination scheme for the SN74LS122NSR is to use a 1kΩ to 10kΩ pull-up resistor on the output pins, depending on the load capacitance and the output current. This helps to ensure proper signal integrity and reduce electromagnetic interference (EMI).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74LS122NSR Overview

Use the download button to access the SN74LS122NSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L, or try a keyword search, such as Prescaler/Multivibrators
