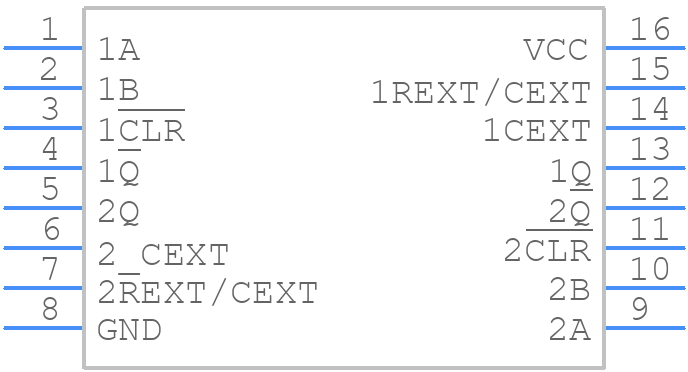

SN74LS123DBR - Texas Instruments

SN74LS123DBR Details

• Manufacturer Part Number:

  SN74LS123DBR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Date Of Intro:

  2018-09-28

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  RETRIGGERABLE

• Family:

  LS

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e4

• Length:

  6.2 mm

• Logic IC Type:

  MONOSTABLE MULTIVIBRATOR

• Max I(ol):

  0.008 A

• Moisture Sensitivity Level:

  1

• Number of Data/Clock Inputs:

  2

• Number of Functions:

  2

• Number of Terminals:

  16

• Operating Temperature-Max:

  70 °C

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  20 mA

• Propagation Delay (tpd):

  56 ns

• Seated Height-Max:

  2 mm

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  TTL

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5.3 mm
