The maximum clock frequency of the SN74LS191D is typically around 25 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to check the device's timing specifications and perform thorough testing to ensure reliable operation at higher frequencies.
To ensure proper synchronization of the counter outputs, it's essential to use a clock signal with a clean, stable edge and to ensure that the clock signal is properly terminated. Additionally, the counter outputs should be loaded with a suitable load capacitance to prevent ringing or oscillations.
A simple power-on reset circuit can be implemented using a resistor, capacitor, and diode connected to the VCC pin. This circuit ensures that the device is properly reset during power-up and prevents any unwanted behavior. The specific values of the components may vary depending on the application and operating conditions.
Yes, the SN74LS191D can be used as a frequency divider by connecting the clock input to the desired frequency source and using the counter outputs to generate the divided frequency. However, it's essential to ensure that the device is properly configured and that the output frequencies are within the device's specifications.
Metastability issues can occur in the SN74LS191D when the clock signal is not properly synchronized or when the device is operated at high frequencies. To handle metastability issues, it's recommended to use a clock signal with a clean, stable edge and to implement a metastability resolver circuit, such as a synchronizer or a FIFO, to ensure reliable data transfer.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN74LS191D Overview

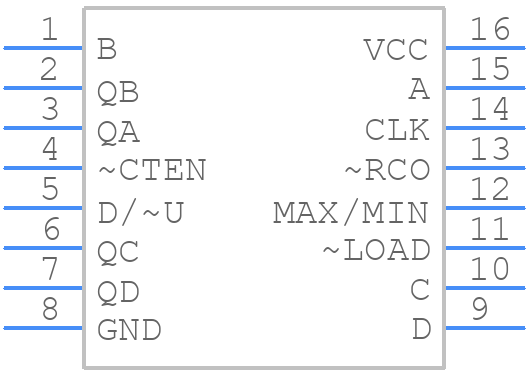

Use the download button to access the SN74LS191D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L,
or try a keyword search, such as Counters
