SN74LS321N - Texas Instruments

Description: Phase Locked Loops - PLL Crystal-controlled oscillator 16-PDIP 0 to 70

Download SN74LS321N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

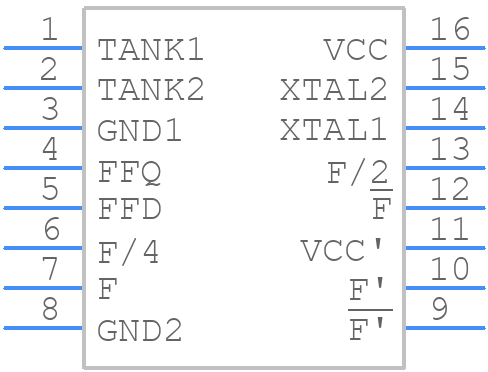

Symbol
SN74LS321N - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74LS321N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16 pdip n
click to zoom
3D Models
SN74LS321N - Texas Instruments - 3D model - Dual-In-Line Packages - 16 pdip n
click to zoom

SN74LS321N Details

  • Manufacturer Part Number:

    SN74LS321N

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

SN74LS321N Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the SN74LS321N is typically around 30-40 MHz, but it can vary depending on the specific application and operating conditions.
  • It is recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This ensures that the device is properly initialized and avoids any potential latch-up or damage.
  • The recommended operating voltage range for the SN74LS321N is 4.75V to 5.25V, with a typical operating voltage of 5V.
  • The SN74LS321N requires proper termination to prevent signal reflections and ensure reliable operation. This can be achieved by using a termination resistor (e.g. 50 ohms) at the output of the device, and/or using a transmission line with a characteristic impedance of 50 ohms.
  • No, the SN74LS321N is not recommended for use in 3.3V systems. It is designed to operate at 5V, and using it at 3.3V may result in reduced performance, increased power consumption, or even damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74LS321N Overview

Use the download button to access the SN74LS321N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L, or try a keyword search, such as Clock Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
