The maximum operating frequency of the SN74LS348D is typically around 30-40 MHz, but it can vary depending on the specific application and operating conditions.
To ensure reliable operation of the SN74LS348D in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range (0°C to 70°C).
The SN74LS348D is a 5V device, but it can be used in 3.3V or 2.5V systems with some limitations. However, the output voltage levels may not be compatible with 3.3V or 2.5V logic, and the device's performance may be degraded. It's recommended to use a level translator or voltage regulator to ensure proper operation.
The SN74LS348D has a recommended input voltage range of 0.8V to 2.4V for logic 0 and 3.5V to 5.5V for logic 1. It's essential to ensure that the input voltage levels are within this range to prevent damage to the device or incorrect operation.
The power consumption of the SN74LS348D depends on the operating frequency, input voltage, and output load. Typically, the quiescent current is around 10-20 mA, and the dynamic current is around 50-100 mA per gate. However, the actual power consumption may vary depending on the specific application.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN74LS348D Overview

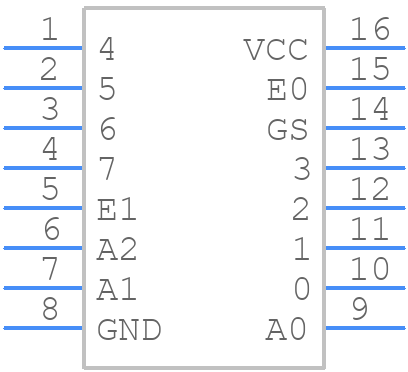

Use the download button to access the SN74LS348D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L,
or try a keyword search, such as Arithmetic Circuits
