The recommended operating voltage range for the SN74LS368ADR is 4.75V to 5.25V, as specified in the datasheet. However, it's recommended to operate the device within the range of 5V ± 10% for optimal performance.
The input voltage thresholds for the SN74LS368ADR are typically around 2V for a logic high and 0.8V for a logic low. It's essential to ensure that the input signals meet these thresholds to avoid incorrect logic levels and potential device malfunction.
The maximum clock frequency that the SN74LS368ADR can handle is typically around 30MHz, although this may vary depending on the specific application and operating conditions. It's essential to consult the datasheet and perform thorough testing to ensure the device can meet the required clock frequency.
Proper power sequencing is crucial for the SN74LS368ADR to avoid damage or malfunction. It's recommended to power up the device in the following sequence: VCC, then input signals, and finally the clock signal. Similarly, during power-down, the clock signal should be removed first, followed by the input signals, and finally VCC.
The SN74LS368ADR has a maximum junction temperature (TJ) of 150°C. It's essential to ensure proper heat dissipation and thermal management to avoid overheating, which can lead to device failure or malfunction. This can be achieved through the use of heat sinks, thermal interfaces, and proper PCB design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74LS368ADR Overview

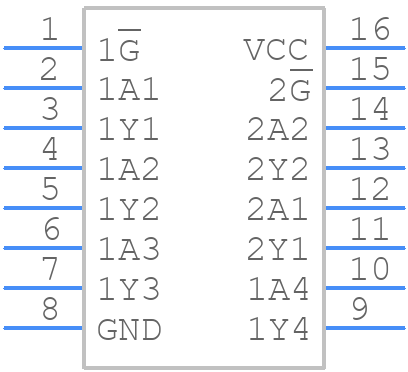

Use the download button to access the SN74LS368ADR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L,
or try a keyword search, such as Bus Driver/Transceivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
