SN74LS375D - Texas Instruments

Description: 4 BIT BISTABLE LATCHES

Download SN74LS375D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

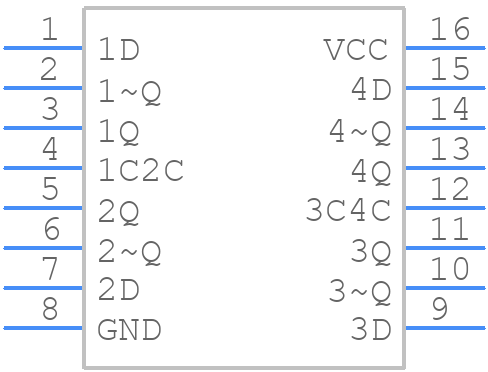

Symbol
SN74LS375D - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74LS375D - Texas Instruments PCB footprint - Other - Other - SOIC127P600X175-16N
click to zoom
3D Models
SN74LS375D - Texas Instruments - 3D model - Other - SOIC127P600X175-16N
click to zoom

SN74LS375D Details

  • Manufacturer Part Number:

    SN74LS375D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    DUMMY VAL

  • Family:

    LS

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    D LATCH

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    12 mA

  • Prop. Delay@Nom-Sup:

    30 ns

  • Propagation Delay (tpd):

    30 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3.9 mm

  • fmax-Min:

    35 MHz

SN74LS375D Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the SN74LS375D is typically around 10 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to check the device's timing specifications and perform thorough testing to ensure reliable operation at higher frequencies.
  • To ensure reliable data transfer, make sure to follow proper signal integrity practices, such as using proper termination, impedance matching, and signal buffering. Additionally, ensure that the clock and data signals are properly synchronized and that the device is operated within its specified voltage and temperature ranges.
  • The SN74LS375D is a 5V device, but it can be used in a 3.3V system with proper level shifting and voltage translation. However, this may require additional circuitry and careful design consideration to ensure reliable operation and prevent damage to the device.
  • To ensure proper operation, it's recommended to follow a controlled power-up and power-down sequence, where the power supply voltage is applied to the device before the clock signal, and removed in the reverse order. This helps prevent unwanted device behavior and ensures reliable operation.
  • The SN74LS375D is a high-power device that can generate significant heat during operation. Ensure proper thermal management by providing adequate heat sinking, airflow, and thermal dissipation to prevent overheating and device failure.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

SN74LS375D Overview

Use the download button to access the SN74LS375D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L, or try a keyword search, such as FF/Latches

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
