The maximum clock frequency of the SN74LS592NSR is 20 MHz, but it can vary depending on the operating voltage and temperature. It's recommended to check the timing characteristics in the datasheet for specific frequency limits.
To ensure reliable data transfer, make sure to follow proper signal integrity practices, such as using proper termination, minimizing signal skew, and ensuring that the clock signal is clean and stable. Additionally, use the recommended operating voltage and temperature ranges, and ensure that the device is properly decoupled.
The power consumption of the SN74LS592NSR varies depending on the operating frequency, voltage, and temperature. According to the datasheet, the typical power consumption is around 135 mW at 5V and 10 MHz. However, it's recommended to check the power consumption calculations in the datasheet for specific operating conditions.
The SN74LS592NSR is designed to operate at 5V, but it can be used in a 3.3V system with some limitations. The device will still function, but the output voltage levels may not be compatible with 3.3V logic. Additionally, the device's performance may be affected, and the maximum clock frequency may be reduced. It's recommended to check the datasheet for specific voltage tolerance and performance characteristics.
The asynchronous reset input (RST) on the SN74LS592NSR is active-low, meaning it should be pulled low to reset the device. When the RST input is asserted, the device will reset and all outputs will be cleared. It's recommended to use a pull-up resistor on the RST input to ensure it's not floating, and to use a debouncing circuit to prevent multiple reset pulses.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74LS592NSR Overview

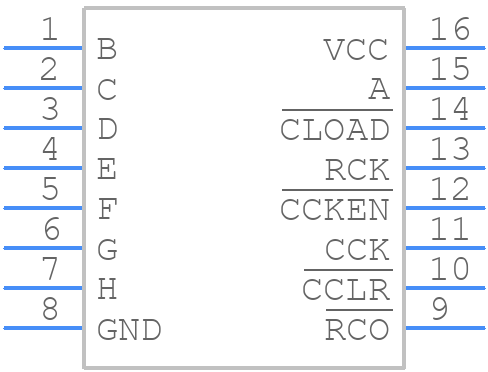

Use the download button to access the SN74LS592NSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L,
or try a keyword search, such as Counters
