SN74LS595DG4 - Texas Instruments

Description: Shift Register Single 8-Bit Serial to Serial/Parallel 16-Pin SOIC Tube

Download SN74LS595DG4 Model

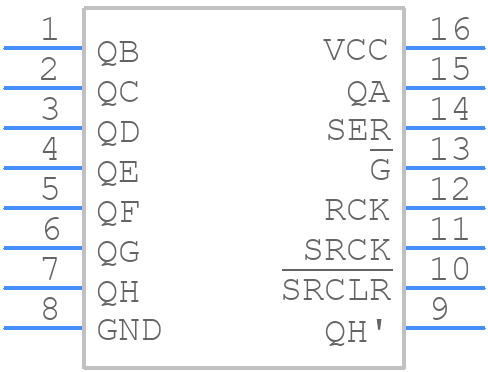

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN74LS595DG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
SN74LS595DG4 - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

SN74LS595DG4 Details

  • Manufacturer Part Number:

    SN74LS595DG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    SERIAL OUTPUT PIN FOR CASCADING

  • Count Direction:

    RIGHT

  • Family:

    LS

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    45 pF

  • Logic IC Type:

    SERIAL IN PARALLEL OUT

  • Max Frequency@Nom-Sup:

    20000000 Hz

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    65 mA

  • Prop. Delay@Nom-Sup:

    25 ns

  • Propagation Delay (tpd):

    25 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3.9 mm

  • fmax-Min:

    20 MHz

SN74LS595DG4 Frequently Asked Questions (FAQs)

  • The maximum clock frequency is typically limited by the rise and fall times of the clock signal, as well as the capacitive load on the clock line. As a general rule, the clock frequency should not exceed 30 MHz to ensure reliable operation.
  • To ensure proper initialization, the RCLR (Reset) pin should be tied to VCC through a pull-up resistor, and the SRCLR (Synchronous Reset) pin should be tied to GND through a pull-down resistor. This will ensure that the shift register is reset to a known state after power-up.
  • While the SN74LS595DG4 is primarily designed as a shift register, it can be used as a level shifter in certain applications. However, it's essential to ensure that the input signals are properly conditioned and that the output signals are properly terminated to avoid signal reflections and distortion.
  • In theory, there is no limit to the number of shift registers that can be cascaded together, as long as the output of one register is connected to the input of the next. However, as the number of registers increases, the clock signal may become distorted, and the overall system may become more prone to errors.
  • Clock skew can be a significant issue when using multiple shift registers. To minimize clock skew, it's essential to use a single clock source and to ensure that the clock signal is properly distributed to each register. Additionally, using a clock buffer or repeater can help to reduce clock skew and ensure reliable operation.
