The maximum clock frequency of the SN74LS597D is 10 MHz, but it can vary depending on the operating voltage and temperature. It's recommended to check the timing characteristics in the datasheet for specific frequency limits.
To ensure reliable data transfer, make sure to follow proper signal integrity practices, such as using proper termination, impedance matching, and signal buffering. Also, ensure that the clock and data signals are properly synchronized and meet the setup and hold time requirements specified in the datasheet.
The power consumption of the SN74LS597D depends on the operating frequency, voltage, and load. According to the datasheet, the typical power consumption is around 150 mW at 5V and 10 MHz. To reduce power consumption, consider using a lower operating voltage, reducing the clock frequency, or using power-saving modes if available.
Yes, the SN74LS597D can be used in a 3.3V system, but you'll need to ensure that the input signals are compatible with the device's input voltage levels. You may need to use level translators or voltage dividers to interface with 3.3V logic. Additionally, check the datasheet for any specific voltage-related limitations or recommendations.
The SN74LS597D has built-in error detection mechanisms, such as parity checking and clock monitoring. You can use these features to detect errors and take corrective action, such as resetting the device or re-transmitting data. Implement error handling mechanisms in your system design to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74LS597D Overview

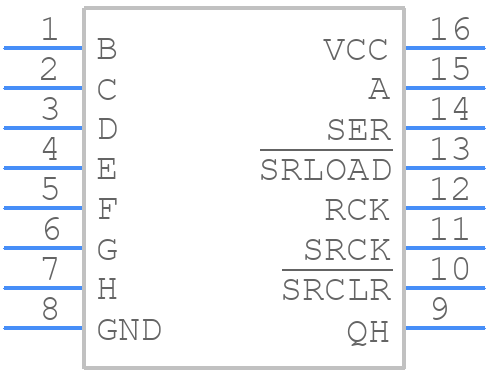

Use the download button to access the SN74LS597D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L,
or try a keyword search, such as Shift Registers
