SN74LS624DR - Texas Instruments

Description: Oscillator VCO 1.1MHz to 25MHz 45pF Squarewave 50% 5V 14-Pin SOIC SMD T/R

Download SN74LS624DR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

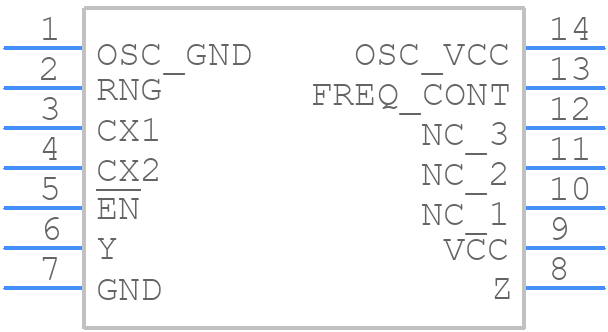

SN74LS624DR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74LS624DR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (-R-PDSO-G14)
click to zoom
3D Models
SN74LS624DR - Texas Instruments - 3D model - Small Outline Packages - D (-R-PDSO-G14)
click to zoom

SN74LS624DR Details

  • Manufacturer Part Number:

    SN74LS624DR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT

  • Control Voltage-Max:

    5 V

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Frequency-Nom:

    20 MHz

  • Operating Temperature-Max:

    70 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

SN74LS624DR Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the SN74LS624DR is 2 MHz.
  • No, the SN74LS624DR is a 5V device and is not compatible with 3.3V systems. Using it in a 3.3V system may result in unreliable operation or damage to the device.
  • The SN74LS624DR has a specific power-up and power-down sequence requirement to ensure proper operation. The VCC pin should be powered up before the input signals, and the input signals should be stable before the clock signal is applied. During power-down, the clock signal should be stopped before the input signals are removed, and the VCC pin should be powered down last.
  • The SN74LS624DR can drive a maximum capacitive load of 100 pF.
  • The SN74LS624DR is rated for operation up to 70°C. Operating the device above this temperature may result in reduced reliability or failure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74LS624DR Overview

Use the download button to access the SN74LS624DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L, or try a keyword search, such as Voltage Controlled Oscillators
