Part Image

SN74LS669N - Texas Instruments

Description: IC SYNC UP/DWN BNRY COUNTR 16DIP

Download SN74LS669N Model

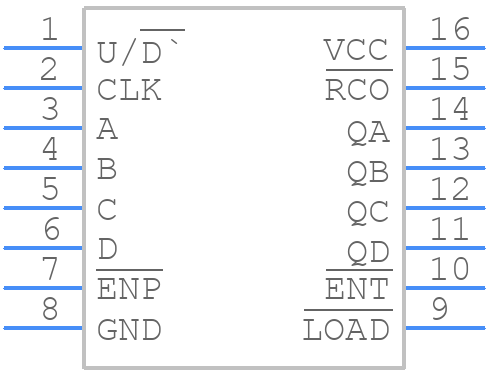

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN74LS669N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom
3D Models
SN74LS669N - Texas Instruments  - 3D model - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom

SN74LS669N Details

  • Manufacturer Part Number:

    SN74LS669N

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    TCO OUTPUT

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    LS

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e4

  • Length:

    19.305 mm

  • Load Capacitance (CL):

    15 pF

  • Load/Preset Input:

    YES

  • Logic IC Type:

    BINARY COUNTER

  • Mode of Operation:

    SYNCHRONOUS

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power Supply Current-Max (ICC):

    34 mA

  • Propagation Delay (tpd):

    27 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.62 mm

  • fmax-Min:

    25 MHz

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74LS669N Overview

Use the download button to access the SN74LS669N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L, or try a keyword search, such as Counters

Parts related to SN74LS669N

Showing 0 results

SN74LS669N Alternates

Showing results

Image Part Number Model
Part Image SN74LS169BJP4 Rochester Electronics LLC

Binary Counter,

Part Image SN74LS169AN-10 Texas Instruments

LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, PDIP16

Part Image SN74LS169JD Motorola Mobility LLC

LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, CDIP16, CERAMIC, DIP-16

Part Image SN74LS169NS Motorola Semiconductor Products

Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDIP16, PLASTIC, DIP-16

Part Image SNJ54LS169AJ-00 Texas Instruments

LS SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL BINARY COUNTER, CDIP16, CERAMIC, DIP-16

For a full list of alternate parts for SN74LS669N, check out Findchips.com
