The maximum clock frequency of the SN74LS90DE4 is typically around 2-3 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to check the device's timing specifications and perform thorough testing to ensure reliable operation at the desired clock frequency.
To ensure proper power supply and decoupling, connect the VCC pin to a stable 5V power supply, and decouple the power supply lines with 0.1uF ceramic capacitors as close to the device as possible. Additionally, use a 10uF electrolytic capacitor to filter out any noise or ripple on the power supply lines.
The recommended operating temperature range for the SN74LS90DE4 is 0°C to 70°C. However, the device can operate up to 85°C with reduced performance and reliability. It's essential to ensure that the device is operated within the recommended temperature range to maintain its performance and longevity.
To handle the output signals of the SN74LS90DE4, use a suitable load impedance and ensure that the output signals are properly terminated to prevent signal reflection and distortion. Additionally, use a buffer or a line driver if the output signals need to be driven over long distances or to multiple loads.
Possible causes of oscillation or instability in the SN74LS90DE4 include improper power supply decoupling, inadequate output signal termination, and excessive capacitive loading on the output signals. Ensure that the device is properly powered, decoupled, and loaded to prevent oscillation or instability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74LS90DE4 Overview

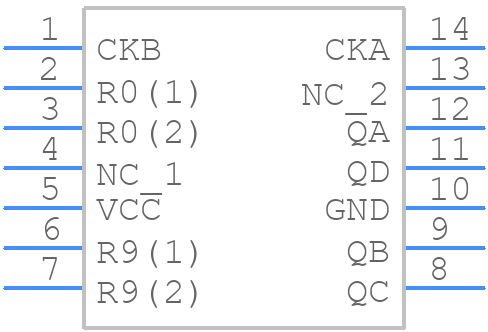

Use the download button to access the SN74LS90DE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L,
or try a keyword search, such as Counters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
