The maximum clock frequency of the SN74LS90DRG4 is typically around 2-3 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to check the device's timing specifications and perform thorough testing to ensure reliable operation at the desired clock frequency.
To ensure proper power and decoupling, make sure to provide a stable power supply voltage within the recommended range (4.75V to 5.25V), and use a decoupling capacitor (typically 0.1uF to 1uF) as close to the device's power pins as possible. Additionally, consider using a power supply filter or regulator to reduce noise and ripple.
The recommended operating temperature range for the SN74LS90DRG4 is -40°C to 85°C. However, it's essential to check the device's datasheet and reliability reports for specific temperature-related specifications and derating factors.
The SN74LS90DRG4 is a 5V device, and it's not recommended to use it in a 3.3V system without proper level shifting or voltage translation. Using the device at a lower voltage may result in reduced performance, increased power consumption, or even damage to the device.
To troubleshoot issues with the SN74LS90DRG4, start by verifying the power supply voltage, clock signal frequency and amplitude, and input signal integrity. Use a logic analyzer or oscilloscope to monitor the device's inputs and outputs, and check for any signs of noise, ringing, or signal distortion. Consult the device's datasheet and application notes for specific troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74LS90DRG4 Overview

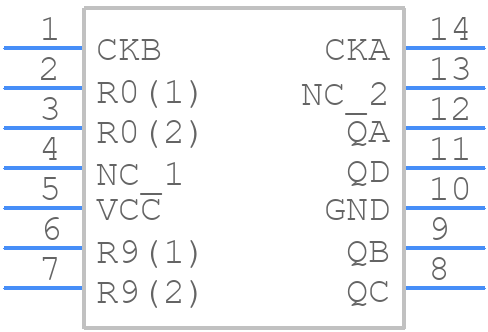

Use the download button to access the SN74LS90DRG4 schematic symbol, PCB footprint, and 3D model.
