The maximum clock frequency of the SN74LS93NSR is 32 MHz, but it can vary depending on the specific application and operating conditions.
To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range (-40°C to 85°C).
The recommended power-on sequence for the SN74LS93NSR is to apply power to the VCC pin before applying any input signals, and to ensure that the power supply is stable and within the specified voltage range (4.75V to 5.25V) before applying any clock signals.
Metastability issues in the SN74LS93NSR can be handled by using synchronization circuits, such as flip-flops or synchronizers, to ensure that asynchronous inputs are properly synchronized with the clock signal. Additionally, it is recommended to follow proper design practices, such as using a single clock domain and avoiding asynchronous inputs, to minimize the risk of metastability issues.
The recommended layout and routing strategy for the SN74LS93NSR is to follow proper PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and avoiding signal crosstalk and electromagnetic interference (EMI). Additionally, it is recommended to follow Texas Instruments' recommended layout and routing guidelines for the SN74LS93NSR.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74LS93NSR Overview

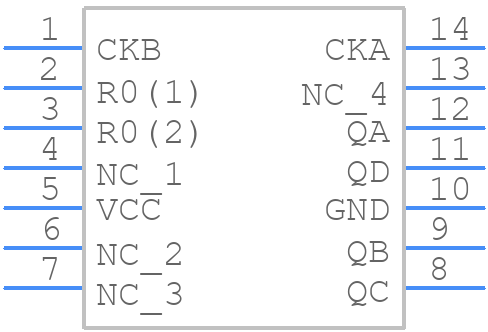

Use the download button to access the SN74LS93NSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L,
or try a keyword search, such as Counters
