The maximum operating frequency of the SN74LV139AD is 100 MHz, but it can vary depending on the specific application and operating conditions.
To ensure signal integrity, use proper PCB layout techniques, such as using short signal traces, minimizing impedance mismatch, and adding termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
Yes, the SN74LV139AD can be used in a 3.3V system. The recommended power supply voltage range is 2.7V to 3.6V, with a typical operating voltage of 3.3V. Ensure that the power supply is stable and well-regulated to prevent voltage droop or noise.
The SN74LV139AD has a maximum junction temperature of 150°C. To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and consider using a thermal interface material to improve heat transfer. Also, follow proper PCB design guidelines to minimize thermal resistance.
The SN74LV139AD has built-in ESD protection diodes on all pins, which can withstand electrostatic discharges up to 2 kV according to the Human Body Model (HBM). To prevent latch-up, ensure that the device is operated within the recommended voltage and current ranges, and avoid applying voltage to the inputs before the power supply is stable.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74LV139AD Overview

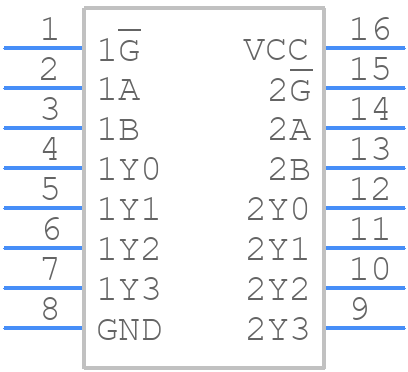

Use the download button to access the SN74LV139AD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L,
or try a keyword search, such as Decoder/Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
