SN74LV164ADGVR - Texas Instruments

Description: 8-Bit Parallel-Out Serial Shift Registers

Download SN74LV164ADGVR Model

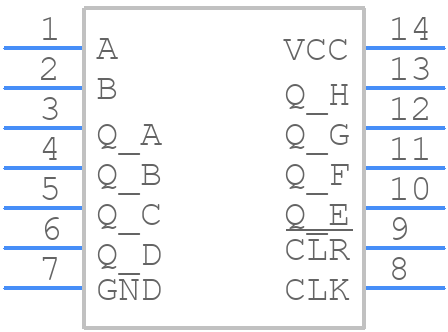

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN74LV164ADGVR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TVSOP-DGV-14
click to zoom
3D Models
SN74LV164ADGVR - Texas Instruments  - 3D model - Small Outline Packages - TVSOP-DGV-14
click to zoom

SN74LV164ADGVR Details

  • Manufacturer Part Number:

    SN74LV164ADGVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    AND-GATED SERIAL INPUTS (A AND B)

  • Count Direction:

    RIGHT

  • Family:

    LV/LV-A/LVX/H

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    SERIAL IN PARALLEL OUT

  • Max Frequency@Nom-Sup:

    40000000 Hz

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.02 mA

  • Propagation Delay (tpd):

    25 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3.6 mm

  • fmax-Min:

    65 MHz

SN74LV164ADGVR Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the SN74LV164ADGVR is 100 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to check the device's timing characteristics and perform thorough testing to ensure reliable operation at the desired clock frequency.
  • To ensure proper power and decoupling, follow these guidelines: use a high-quality power supply with low noise and ripple, decouple the VCC pin with a 0.1 μF ceramic capacitor, and add additional bulk capacitance (e.g., 10 μF) if the device is far from the power supply. Also, ensure that the power supply can provide sufficient current to the device.
  • The recommended termination scheme for the SN74LV164ADGVR's outputs depends on the specific application and signal integrity requirements. In general, a series termination resistor (Rs) of 22-33 ohms is recommended, along with a parallel termination capacitor (Cp) of 10-22 pF. However, it's essential to perform signal integrity analysis and simulation to determine the optimal termination scheme for your specific design.
  • Yes, the SN74LV164ADGVR can be used in a 3.3V system, but you need to ensure that the input signals are within the device's recommended input voltage range (Vih = 2.0V, Vil = 0.8V). Additionally, you should consider the output voltage levels, as the device's output high voltage (Voh) may not be sufficient to drive 3.3V logic. You may need to use level translators or buffers to ensure proper signal levels.
  • Asynchronous inputs, like the clock and clear inputs, should be synchronized with the clock domain to prevent metastability issues. You can use a synchronizer circuit, such as a two-stage flip-flop, to synchronize these inputs with the clock signal. This ensures that the device operates reliably and prevents potential errors.
