SN74LV595ANSR - Texas Instruments

Description: 8-Bit Shift Registers With 3-State Output Registers

Download SN74LV595ANSR Model
Schematic
symbols

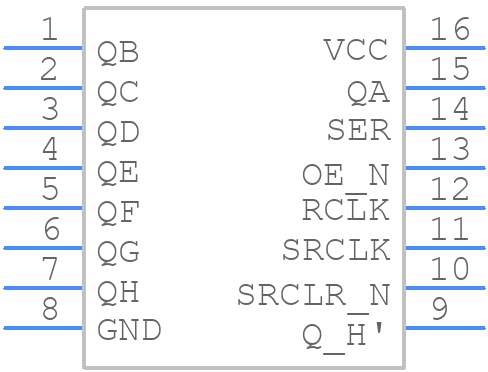

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN74LV595ANSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - NS (R-PDSO-G**)
click to zoom
3D Models
SN74LV595ANSR - Texas Instruments  - 3D model - Small Outline Packages - NS (R-PDSO-G**)
click to zoom

SN74LV595ANSR Details

  • Manufacturer Part Number:

    SN74LV595ANSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    PARALLEL OUTPUT IS REGISTERED; UNREGISTERED SERIAL SHIFT RIGHT OUTPUT

  • Count Direction:

    RIGHT

  • Family:

    LV/LV-A/LVX/H

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    SERIAL IN PARALLEL OUT

  • Max Frequency@Nom-Sup:

    40000000 Hz

  • Max I(ol):

    0.016 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.02 mA

  • Propagation Delay (tpd):

    27.5 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    5.3 mm

  • fmax-Min:

    95 MHz

SN74LV595ANSR Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the SN74LV595ANSR is 30 MHz, but it can vary depending on the operating voltage and temperature. It's recommended to check the timing characteristics in the datasheet for specific operating conditions.
  • To ensure that the output pins are in a high-impedance state during power-up, you can connect the OE (output enable) pin to VCC through a pull-up resistor. This will keep the outputs in a high-impedance state until the device is fully powered up and the OE pin is actively driven low.
  • Yes, the SN74LV595ANSR can be used as a level shifter, but it's not recommended. The device is designed to operate with a specific voltage range (2.5V to 5.5V) and may not provide reliable level shifting outside of this range. If level shifting is required, it's recommended to use a dedicated level shifter IC.
  • The SN74LV595ANSR has a latency of 10 ns to 30 ns between the clock input and the output pins, depending on the operating frequency and voltage. To handle this latency, you can add a delay element in your design or use a clock domain crossing technique to synchronize the clock and data signals.
  • Yes, the SN74LV595ANSR can operate in a 3.3V system, but you need to ensure that the input signals are within the recommended voltage range (2.5V to 5.5V). Additionally, you may need to adjust the pull-up resistors and termination resistors to accommodate the lower voltage.
