SN74LVC112ADBR - Texas Instruments

Description: Dual Negative-Edge-Triggered J-K Flip-Flop With Clear And Preset

Download SN74LVC112ADBR Model

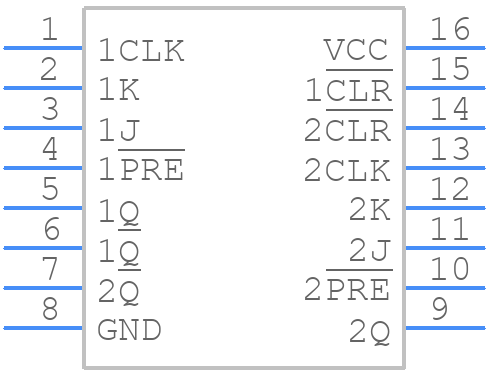

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN74LVC112ADBR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G16)
click to zoom
3D Models
SN74LVC112ADBR - Texas Instruments  - 3D model - Small Outline Packages - DB (R-PDSO-G16)
click to zoom

SN74LVC112ADBR Details

  • Manufacturer Part Number:

    SN74LVC112ADBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    6.2 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    J-K FLIP-FLOP

  • Max Frequency@Nom-Sup:

    150000000 Hz

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.01 mA

  • Prop. Delay@Nom-Sup:

    4.8 ns

  • Propagation Delay (tpd):

    7.1 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    NEGATIVE EDGE

  • Width:

    5.3 mm

  • fmax-Min:

    150 MHz

SN74LVC112ADBR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the SN74LVC112ADBR is 1.65 V to 3.6 V.
  • To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
  • While the SN74LVC112ADBR is rated for 1.65 V to 3.6 V operation, it can tolerate 5V inputs with some limitations. However, it's not recommended to operate the device at 5V continuously, as it may affect its reliability and lifespan.
  • To avoid latch-up and ensure proper operation, power up the devices in a sequence that ensures the input signals are stable before the device is enabled. A general rule of thumb is to power up the devices in the order of input signals, then clock signals, and finally output enables.
  • The maximum clock frequency supported by the SN74LVC112ADBR is 100 MHz, but this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform simulations to determine the maximum clock frequency for your specific use case.
