The maximum operating frequency of the SN74LVC139ADBR is 100 MHz, but it can vary depending on the specific application and operating conditions.
To ensure signal integrity, use proper PCB layout techniques, such as using short signal traces, minimizing impedance mismatch, and adding termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
Yes, the SN74LVC139ADBR can be used in a 3.3V system. The recommended power supply voltage range is 2.7V to 3.6V, with a typical operating voltage of 3.3V. Ensure that the power supply is stable and noise-free to prevent errors and ensure reliable operation.
The SN74LVC139ADBR has a maximum junction temperature of 150°C. To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and follow proper PCB thermal design guidelines. Additionally, consider using thermal simulation tools to analyze and optimize your design.
The SN74LVC139ADBR has built-in ESD protection and latch-up prevention measures, including diodes and resistors to protect against electrostatic discharge and latch-up. However, it's still important to follow proper handling and assembly procedures to prevent damage during manufacturing and operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74LVC139ADBR Overview

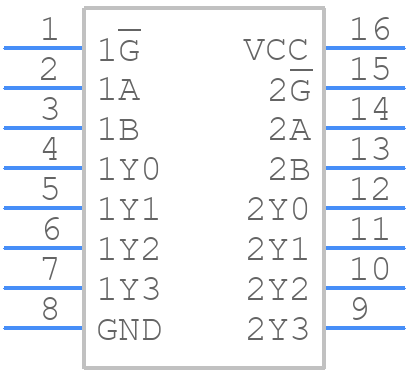

Use the download button to access the SN74LVC139ADBR schematic symbol, PCB footprint, and 3D model.
