The maximum operating frequency of the SN74LVC86ANSR is 100 MHz, but it can vary depending on the specific application and operating conditions.
To ensure signal integrity, use proper PCB layout techniques, such as keeping signal traces short and away from noise sources, using termination resistors, and following the recommended pinout and layout guidelines from Texas Instruments.
Yes, the SN74LVC86ANSR is compatible with 3.3V systems, as it operates from 1.65V to 3.6V. However, ensure that the input signals are within the recommended voltage range to maintain proper operation.
To avoid latch-up or other issues, ensure that the power supply voltage (VCC) is applied before the input signals, and that the input signals are stable before the clock signal is applied.
The recommended termination scheme for the SN74LVC86ANSR is to use a series resistor (Rs) of 22-33 ohms and a parallel capacitor (Cp) of 10-22 pF at the output pins to minimize reflections and ensure signal integrity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74LVC86ANSR Overview

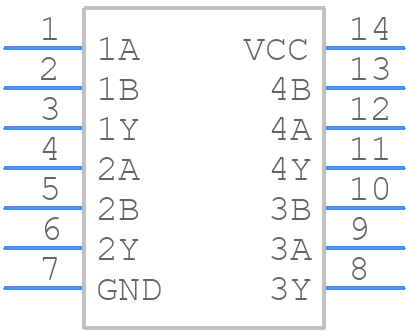

Use the download button to access the SN74LVC86ANSR schematic symbol, PCB footprint, and 3D model.
