SN74LVT8980ADW - Texas Instruments

Description: Embedded Test-Bus Controllers IEEE STD 1149.1 (JTAG) TAP Masters W/ 8-Bit Generic Host Interfaces

Download SN74LVT8980ADW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

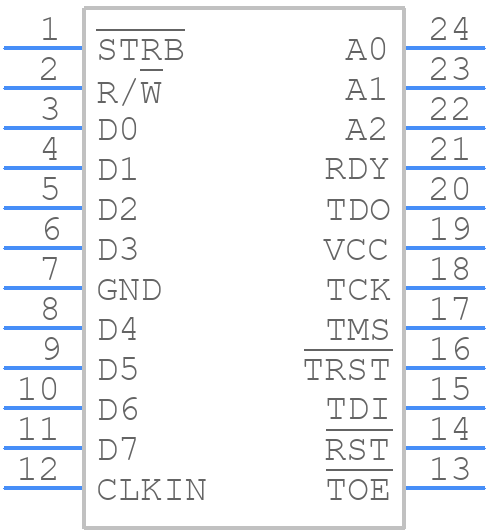

SN74LVT8980ADW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74LVT8980ADW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G24)
click to zoom
3D Models
SN74LVT8980ADW - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G24)
click to zoom

SN74LVT8980ADW Details

  • Manufacturer Part Number:

    SN74LVT8980ADW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • CPU Family:

    LVT

  • External Data Bus Width:

    8

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

SN74LVT8980ADW Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the SN74LVT8980ADW is 250 MHz, but it can vary depending on the specific application and system design.
  • To ensure signal integrity, it's essential to follow proper PCB design and layout guidelines, such as using controlled impedance traces, minimizing signal routing distances, and using termination resistors as needed.
  • Yes, the SN74LVT8980ADW can be used in a 3.3V system. The recommended power supply voltage range is 2.7V to 3.6V, with a maximum current consumption of 100 mA.
  • Thermal management is crucial for the SN74LVT8980ADW. Ensure good airflow around the device, use a heat sink if necessary, and follow proper PCB thermal design guidelines to prevent overheating.
  • Yes, the SN74LVT8980ADW is sensitive to electrostatic discharge (ESD). Handle the device with ESD-protective equipment, such as wrist straps and mats, and follow proper ESD handling procedures to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN74LVT8980ADW Overview

Use the download button to access the SN74LVT8980ADW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
