The recommended operating voltage range for the SN74LVTH652PWR is 2.3V to 3.6V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 1.8V to 4.6V, but the performance may vary.
To ensure signal integrity, it's crucial to follow proper PCB design practices, such as using controlled impedance traces, minimizing signal routing distances, and using termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
The SN74LVTH652PWR is a high-speed bus transceiver, and its maximum data transfer rate depends on the system design and operating conditions. However, it can support data transfer rates up to 100 MHz or more, making it suitable for high-speed applications such as PCI, PCI-X, and PCIe.
When using the SN74LVTH652PWR in a system with multiple power rails, it's essential to ensure proper power sequencing to prevent damage to the device. The datasheet recommends powering up the VCC rail before the input signals, and powering down the input signals before the VCC rail. Additionally, consider using a power sequencing controller or a voltage supervisor to ensure proper power-up and power-down sequences.
The maximum power consumption of the SN74LVTH652PWR depends on the operating frequency, voltage, and load conditions. According to the datasheet, the typical power consumption is around 150 mW at 3.3V and 50 MHz. However, it's essential to consult the datasheet and perform power calculations based on your specific application to ensure accurate power budgeting.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN74LVTH652PWR Overview

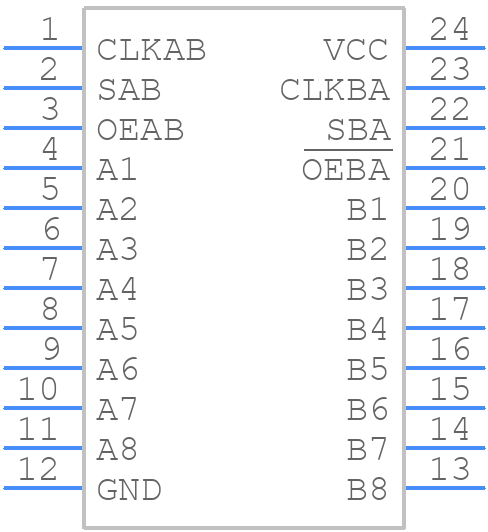

Use the download button to access the SN74LVTH652PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74L,
or try a keyword search, such as Bus Driver/Transceivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
