SN74S1051N footprint, schematic symbol and 3D model by Texas Instruments

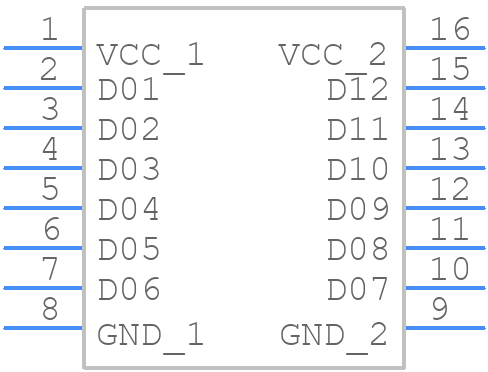

Symbol

click to zoom

PCB Footprints

SN74S1051N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T)+

click to zoom

3D Models

SN74S1051N - Texas Instruments - 3D model - Dual-In-Line Packages - N (R-PDIP-T)+

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SN74S1051N
Part Number SN74S1051N
Manufacturer Texas Instruments
Pin Count 16
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - N (R-PDIP-T)+
Released Date Apr 17, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SN74S1051N Details

Manufacturer Part Number:
SN74S1051N
Brand Name:
Texas Instruments
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
DIP
Pin Count:
16
Country Of Origin:
Malaysia, Mexico
ECCN Code:
EAR99
HTS Code:
8542.39.00.90
Manufacturer:
Texas Instruments
YTEOL:
15
Differential Output:
NO
Interface IC Type:
DIODE BUS TERMINATION ARRAY
JESD-30 Code:
R-PDIP-T16
JESD-609 Code:
e4
Length:
19.305 mm
Number of Bits:
12
Number of Functions:
1
Number of Signal Lines:
12
Number of Terminals:
16
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
5.08 mm
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
NO
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm

SN74S1051N Frequently Asked Questions (FAQs)

The maximum operating frequency of the SN74S1051N is 100 MHz, but it can vary depending on the specific application and operating conditions.
It is recommended to power up the VCC pin before the VEE pin, and power down the VEE pin before the VCC pin to prevent damage to the device.
The recommended termination scheme for the SN74S1051N is to use a 50-ohm resistor in series with the output pin and a 50-ohm load, and to also use a 100-ohm resistor in series with the input pin.
Yes, the SN74S1051N can be used in a 3.3V system, but the output voltage swing will be reduced, and the device may not meet the specified propagation delay and rise/fall times.
The SN74S1051N has a maximum junction temperature of 150°C, and it is recommended to use a heat sink or thermal pad to keep the junction temperature below 120°C to ensure reliable operation.
