SN74S1053N footprint, schematic symbol and 3D model by Texas Instruments

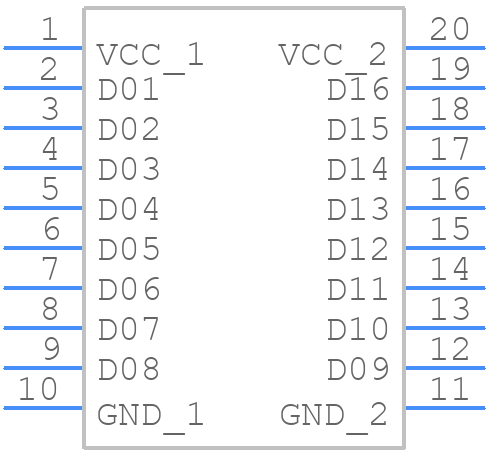

Symbol

click to zoom

PCB Footprints

SN74S1053N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N(R-PDIP-T**)

click to zoom

3D Models

SN74S1053N - Texas Instruments - 3D model - Dual-In-Line Packages - N(R-PDIP-T**)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SN74S1053N
Part Number SN74S1053N
Manufacturer Texas Instruments
Pin Count 20
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - N(R-PDIP-T**)
Released Date Jan 12, 2017
Last Modified Date Jun 5, 2025 6:50 AM UTC
Pinout / Pin List Click Here (Member Only)

SN74S1053N Details

Manufacturer Part Number:
SN74S1053N
Brand Name:
Texas Instruments
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
DIP
Pin Count:
20
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.90
Manufacturer:
Texas Instruments
YTEOL:
15
Differential Output:
NO
Interface IC Type:
DIODE BUS TERMINATION ARRAY
JESD-30 Code:
R-PDIP-T20
JESD-609 Code:
e4
Length:
25.4 mm
Number of Bits:
16
Number of Functions:
1
Number of Signal Lines:
16
Number of Terminals:
20
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP20,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
5.08 mm
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
NO
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm

SN74S1053N Frequently Asked Questions (FAQs)

The maximum operating frequency of the SN74S1053N is 100 MHz, but it can vary depending on the specific application and operating conditions.
It is recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This ensures that the device is properly initialized and avoids any potential latch-up or damage.
The recommended termination scheme for the SN74S1053N is to use a 50-ohm termination resistor in series with a 100-ohm pull-up resistor to VCC. This helps to reduce reflections and improve signal integrity.
Yes, the SN74S1053N can be used in a 3.3V system, but it is recommended to use a voltage regulator to ensure that the supply voltage is within the recommended operating range of 4.5V to 5.5V.
The SN74S1053N has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device temperature below 125°C by using a heat sink or other thermal management techniques.

Trust Checks

System Verified

SN74S1053N Overview

Use the download button to access the SN74S1053N schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SN74S, or try a keyword search, such as Bus Terminators
