SN74S124D - Texas Instruments

Description: Voltage Controlled Oscillator 50MHz, 16-Pin SOIC

Download SN74S124D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

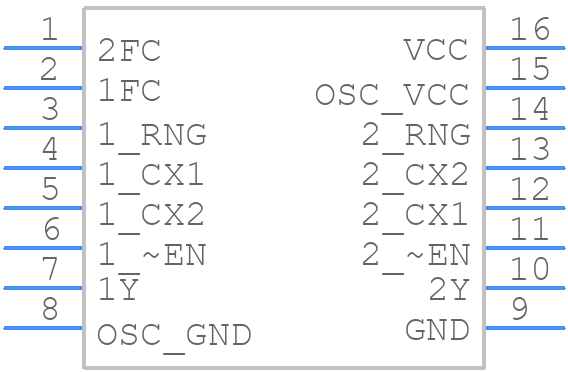

Symbol
SN74S124D - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN74S124D - Texas Instruments PCB footprint - Other - Other - SOIC127P600X175-16N
click to zoom
3D Models
SN74S124D - Texas Instruments - 3D model - Other - SOIC127P600X175-16N
click to zoom

SN74S124D Details

  • Manufacturer Part Number:

    SN74S124D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    S

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Logic IC Type:

    LOGIC CIRCUIT

  • Max I(ol):

    0.02 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Polarity:

    CONFIGURABLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    150 mA

  • Prop. Delay@Nom-Sup:

    70 ns

  • Propagation Delay (tpd):

    70 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SN74S124D Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the SN74S124D is 100 MHz, but it can vary depending on the load capacitance and the output current.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range (-40°C to 85°C).
  • The recommended power-up sequence for the SN74S124D is to apply power to the VCC pin before applying any input signals, and to ensure that the input signals are stable before applying the clock signal.
  • Metastability can be handled by using synchronizers, such as the SN74S124D's built-in synchronizers, or by using external synchronizers. It is also recommended to follow proper design practices, such as using clock domain crossing circuits and avoiding asynchronous clock domain crossings.
  • The maximum input voltage that can be applied to the SN74S124D is 5.5V, which is the absolute maximum rating. However, it is recommended to operate the device within its specified input voltage range (VCC - 0.5V to VCC + 0.5V) to ensure reliable operation.
