A good PCB layout for the SN74VMEH22501ADGVR involves keeping the signal traces short and direct, using a solid ground plane, and placing decoupling capacitors close to the device. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The SN74VMEH22501ADGVR has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the thermal plane. Additionally, ensuring good airflow around the device and using a heat sink if necessary can help to keep the device within its recommended operating temperature range.
The SN74VMEH22501ADGVR has built-in ESD protection, but it's still important to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap or mat, storing the device in an ESD-safe environment, and avoiding touching the device's pins or leads.
The SN74VMEH22501ADGVR is a commercial-grade device, but it can be used in high-reliability or high-temperature applications with proper derating and qualification. Texas Instruments offers a high-reliability version of the device, the SN74VMEH22501ADGVRT, which is qualified to automotive and industrial standards.
To troubleshoot issues with the SN74VMEH22501ADGVR, start by checking the power supply voltage and ensuring that it's within the recommended range. Then, verify that the input signals are correct and that the device is properly configured. Use a logic analyzer or oscilloscope to monitor the device's outputs and inputs, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN74VMEH22501ADGVR Overview

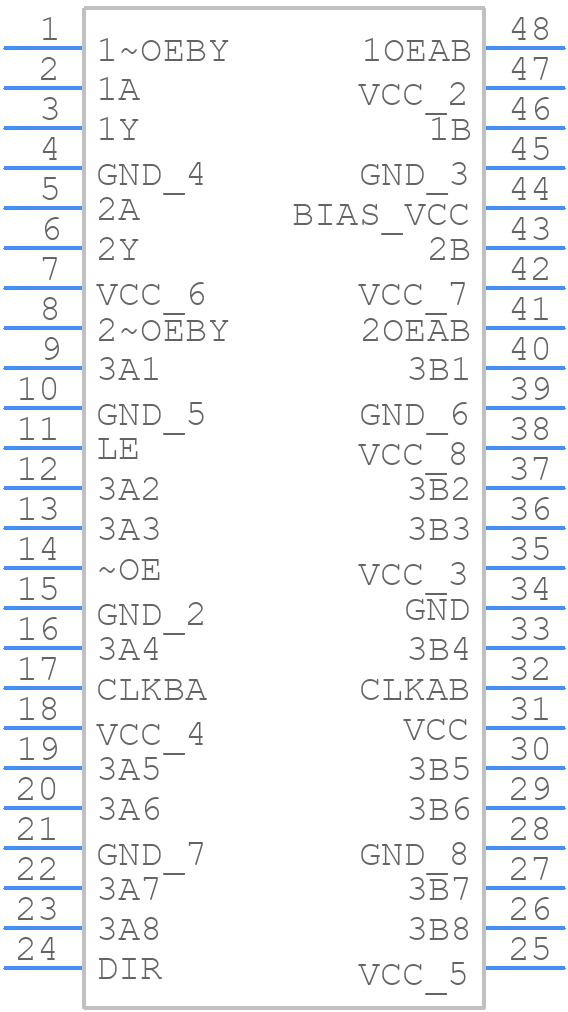

Use the download button to access the SN74VMEH22501ADGVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN74V,
or try a keyword search, such as Bus Driver/Transceivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
