Please enter a minimum 3 letters or numbers
Technical Content
Part Image

SN75DP159RSBR - Texas Instruments

Description: 6 Gbps DP++ to HDMI Retimer I2C Interface 40-Pin WQFN EP T/R

Download SN75DP159RSBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

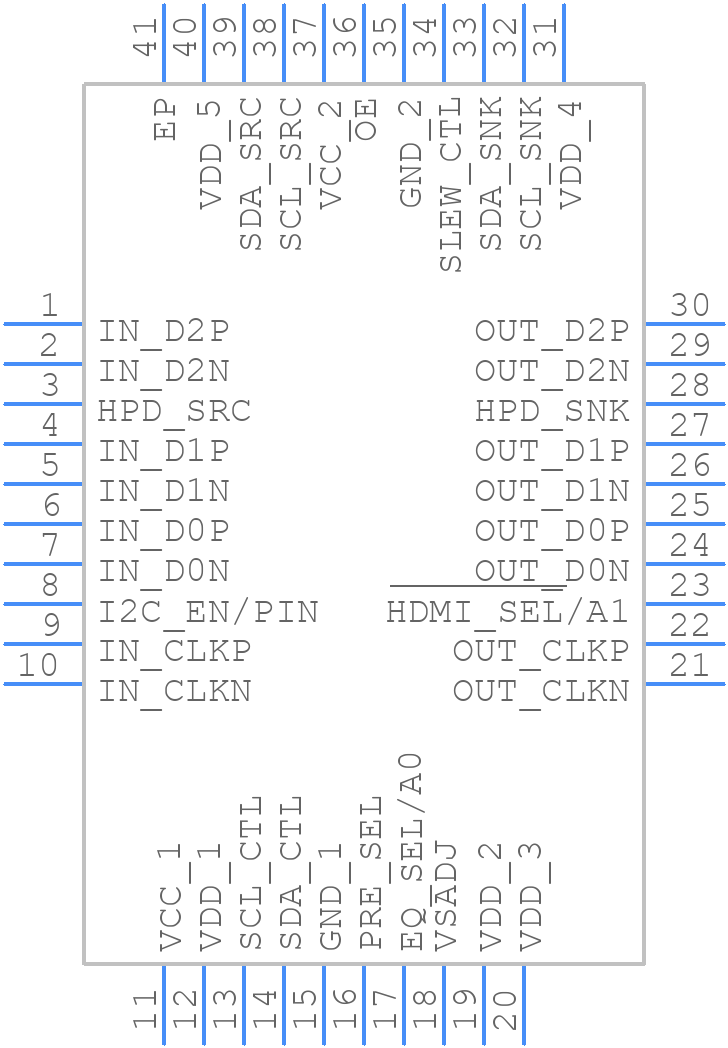

SN75DP159RSBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN75DP159RSBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSB0040E WQFN
click to zoom
3D Models
SN75DP159RSBR - Texas Instruments - 3D model - Quad Flat No-Lead - RSB0040E WQFN
click to zoom

SN75DP159RSBR Details

  • Manufacturer Part Number:

    SN75DP159RSBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES WITH A 3.3V SUPPLY

  • Interface IC Type:

    RETIMER

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    1.27 V

  • Supply Voltage-Min:

    1 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

SN75DP159RSBR Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the SN75DP159RSBR is dependent on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 30 meters (100 feet) at data rates of up to 3 Gbps.
  • To ensure signal integrity with the SN75DP159RSBR, it is recommended to follow proper PCB layout and design guidelines, such as using differential pairs, minimizing trace lengths, and using signal shielding. Additionally, the use of high-quality cables and connectors can also help to minimize signal degradation.
  • The power consumption of the SN75DP159RSBR is typically around 150 mW (3.3 V, 45 mA) when operating at a data rate of 3 Gbps. However, this can vary depending on the specific application and operating conditions.
  • The SN75DP159RSBR is compatible with DisplayPort 1.4, which is backwards compatible with earlier versions of the standard. However, it is not compatible with other display interface standards such as HDMI or VGA.
  • The SN75DP159RSBR can be configured for different data rates through the use of external resistors and capacitors. The device also has a built-in rate-sensing circuit that can automatically detect the data rate and adjust the device's settings accordingly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN75DP159RSBR Overview

Use the download button to access the SN75DP159RSBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75D, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to SN75DP159RSBR

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
