A good PCB layout for the SN75DPHY440SSRHRR involves keeping the high-speed signals away from noise sources, using a solid ground plane, and minimizing trace lengths and vias. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure signal integrity, use a controlled impedance PCB, minimize trace lengths, and use a common mode filter or common mode choke to reduce EMI. Also, ensure that the signal lines are properly terminated and matched to the transmission line impedance.
The maximum cable length supported by the SN75DPHY440SSRHRR depends on the specific application and the type of cable used. However, as a general guideline, the maximum cable length for a USB 3.2 Gen 2 signal is around 3 meters. Longer cables may require repeaters or active cables.
To troubleshoot issues with the SN75DPHY440SSRHRR, use a logic analyzer or oscilloscope to capture the signal waveforms and check for errors. Check the power supply voltage, signal integrity, and PCB layout for any issues. Also, consult the datasheet and application notes for troubleshooting guidelines.
While the SN75DPHY440SSRHRR is designed for USB 3.2 Gen 2 applications, it can be used for other high-speed applications that require a similar signal interface. However, ensure that the device is operated within its specified parameters and that the signal interface is compatible with the target application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75DPHY440SSRHRR Overview

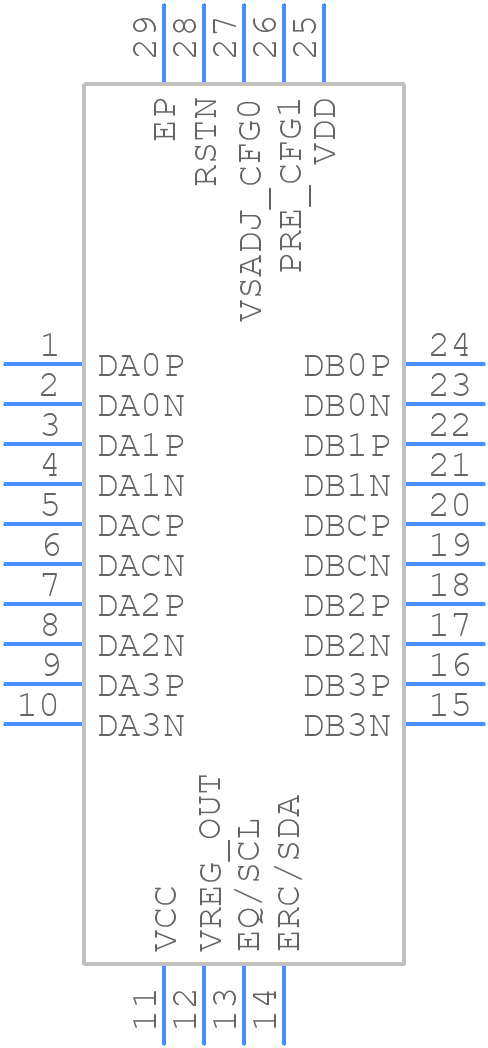

Use the download button to access the SN75DPHY440SSRHRR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75D,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
