The recommended operating temperature range for the SNJ54AS867JT is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range.
The SNJ54AS867JT has an internal POR circuit that ensures the device resets properly during power-up. To handle POR, ensure that the power supply voltage (VCC) rises monotonically and reaches the minimum specified voltage (typically 1.8V) before the device starts operating. Additionally, add a capacitor (typically 0.1uF) between VCC and GND to filter out noise and ensure a clean power-up sequence.
The SNJ54AS867JT can operate up to a maximum clock frequency of 100 MHz. However, the actual clock frequency supported may depend on the specific application, operating conditions, and PCB layout. It's recommended to consult the datasheet and perform thorough testing to ensure the device operates within the specified frequency range.
To implement a reliable reset circuit, use a dedicated reset pin (e.g., RESET) and connect it to a pull-up resistor (typically 1kΩ) and a capacitor (typically 0.1uF) to VCC. This ensures a clean reset signal and prevents unwanted resets due to noise or power glitches.
When designing the PCB layout and routing for the SNJ54AS867JT, ensure that the device's power and ground pins are connected to a solid power plane and a low-impedance ground plane, respectively. Keep signal traces short and away from noise sources, and use a 4-layer PCB stackup to minimize electromagnetic interference (EMI). Additionally, follow the recommended pinout and layout guidelines provided in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SNJ54AS867JT Overview

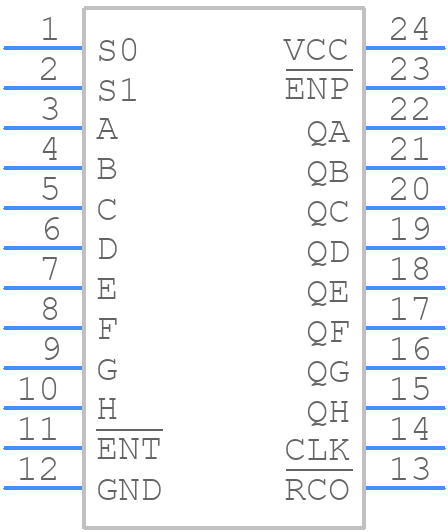

Use the download button to access the SNJ54AS867JT schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SNJ54,
or try a keyword search, such as Counters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
