SNJ54LS181J - Texas Instruments

Description: Arithmetic Logic Unit 4-Bit 1-Element Bipolar 24-Pin CDIP Tube

Download SNJ54LS181J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

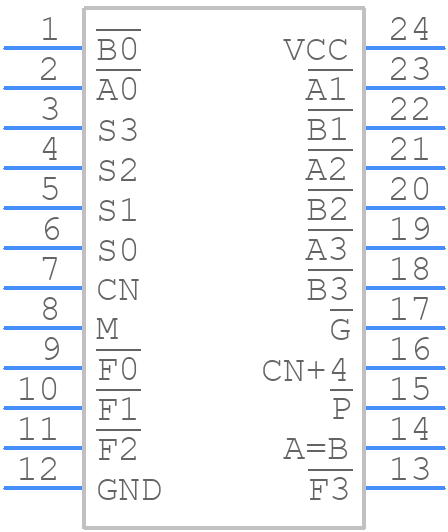

SNJ54LS181J - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

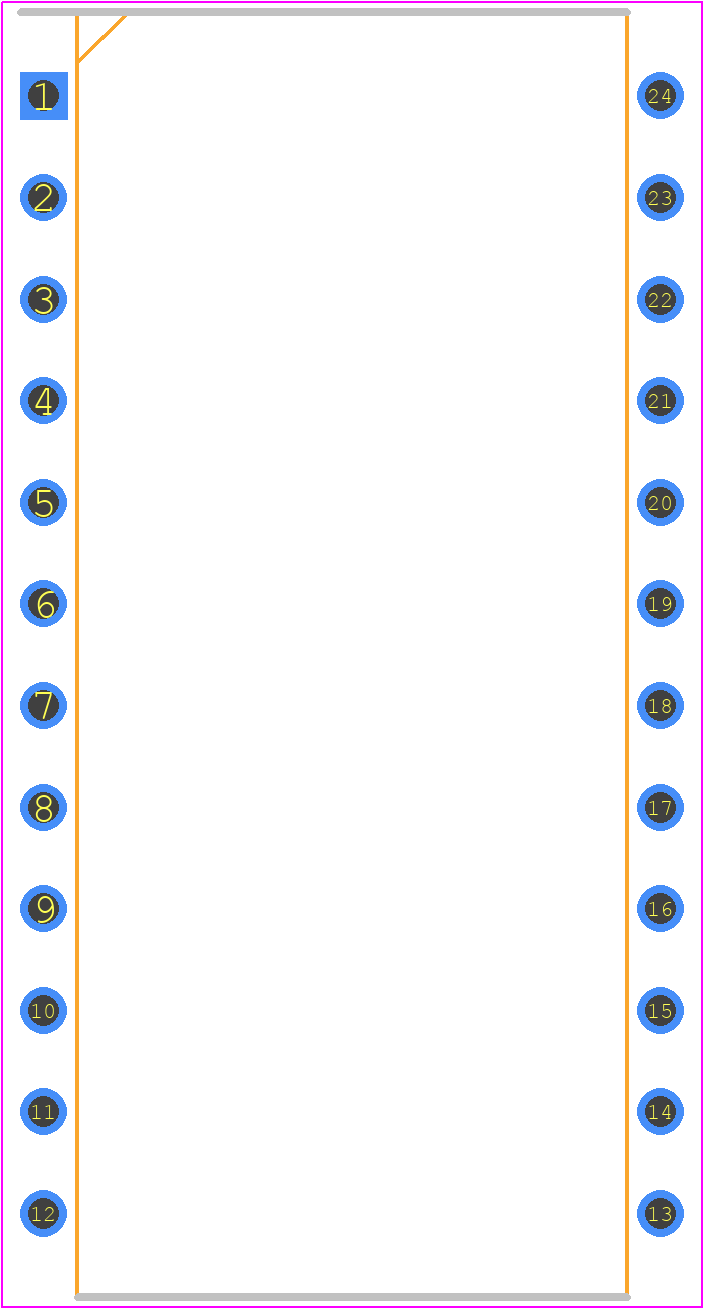

SNJ54LS181J - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - J (R-GDIP-T**)
click to zoom

SNJ54LS181J Details

  • Manufacturer Part Number:

    SNJ54LS181J

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    CAPABLE OF 16 LOGIC & ARITHMETIC OPERATIONS; INTERNAL CARRY AND HIGHER ORDER LOOKAHEAD

  • Family:

    LS

  • JESD-30 Code:

    R-GDIP-T24

  • Length:

    31.75 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    ARITHMETIC LOGIC UNIT

  • Max I(ol):

    0.008 A

  • Number of Bits:

    4

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    35 mA

  • Prop. Delay@Nom-Sup:

    62 ns

  • Propagation Delay (tpd):

    62 ns

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-PRF-38535

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    TTL

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

SNJ54LS181J Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the SNJ54LS181J is 40 MHz, but it can vary depending on the specific application and operating conditions.
  • The CLR input should be synchronized with the clock signal to avoid metastability issues. It's recommended to use a synchronous clear or a reset signal that is synchronized with the clock.
  • A simple POR circuit can be implemented using a resistor, capacitor, and diode. The capacitor should be charged to a voltage above the minimum operating voltage (VCC) to ensure a clean reset signal.
  • Ensure that the device operates within the recommended temperature range (-40°C to 85°C), voltage range (4.75V to 5.25V), and clock frequency range (dc to 40 MHz). Also, follow proper PCB design and layout guidelines to minimize noise and signal integrity issues.
  • The SNJ54LS181J is not designed for radiation-hardened or high-reliability applications. For such applications, consider using radiation-hardened or high-reliability versions of the device, such as those from Texas Instruments' HiRel or Space Products lines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SNJ54LS181J Overview

Use the download button to access the SNJ54LS181J schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SNJ54, or try a keyword search, such as Arithmetic Circuits
