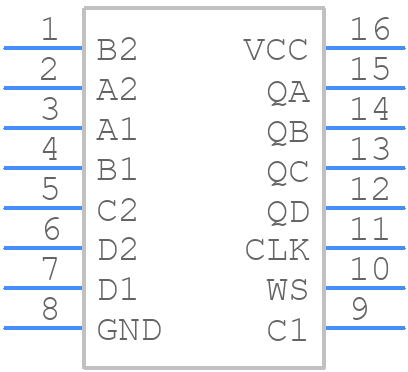

SNJ54LS298J - Texas Instruments

SNJ54LS298J Details

• Manufacturer Part Number:

  SNJ54LS298J

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  DIP-16

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  LG-MAX; FOUR 2:1 MUX FOLLOWED BY REGISTER

• Family:

  LS

• JESD-30 Code:

  R-GDIP-T16

• JESD-609 Code:

  e0

• Length:

  21.34 mm

• Load Capacitance (CL):

  15 pF

• Logic IC Type:

  MULTIPLEXER

• Max I(ol):

  0.004 A

• Number of Functions:

  4

• Number of Inputs:

  2

• Number of Outputs:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Polarity:

  TRUE

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Packing Method:

  TUBE

• Power Supply Current-Max (ICC):

  21 mA

• Prop. Delay@Nom-Sup:

  32 ns

• Propagation Delay (tpd):

  32 ns

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-PRF-38535

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  TTL

• Temperature Grade:

  MILITARY

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
